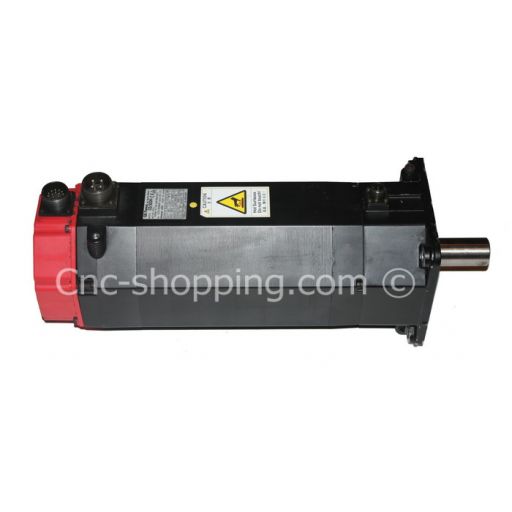

A06B-0178-B277 FANUC Motor Model 30/3000HV

FANUC AC Servo moto model Alpha reference FANUC A06B-0178-B277. This is a FANUC Model Alpha 30/3000 HV motor. The speed is 3000 rpm. This motor has a straight shaft. The motor A06B-0178-B277. includes a FANUC Pulse Alpha I64 . This motor has an electromagnetic brake (24V). Each FANUC Motor HV is tested and comes with a warranty. This motor is ready to replace your FANUC Alpha 30/3000HV Servo Motor part.

For this FANUC HV Motor type A06B-0178-B277, the allowable maximum speeds are specified in such a way that the approval conditions of the IEC34 standard, as they relate to rotational speed, are satisfied. When the allowable maximum speeds are used, the characteristics are not guaranteed. For the maximum speed that each motor can support, refer to the respective data sheet. A 400V power source can be connected directly without using a transformer. The use of waterproof connectors and FANUC’s unique stator seal provide excellent waterproofing on A06B-0178-B277, ensuring that no liquid, such as coolant, can enter the motor. A06B-0178-B277
