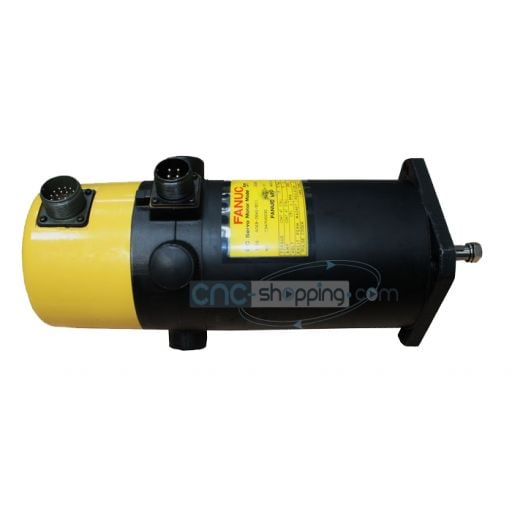

A06B-0642-B011 Fanuc DC 5M Motor

FANUC DC Servo motor A06B-0642-B011. This is a FANUC DC Servo Motor model 5M. The Motor speed is 2000 rpm, 5.9Nm TRQ, 9 Amp, DC 151V. This motor have a taper shaft with a key. This motor includes an encoder 2000 Pulses. Each FANUC Motor A06B-0642-B011 is tested and have a warranty. This motor is ready to replace your defective part.

A FANUC incremental encoder works differently by providing an A and a B pulse output which provide no usable count information in their own right. Rather, the counting is done in the external electronics. The point where the counting begins depends on the counter in the external electronics and not on the position of the encoder. Cnc-shopping website . To provide useful position information, the encoder position must be referenced to the device to which it is attached, generally using an index pulse. The distinguishing feature of the incremental encoder is that it reports an incremental change in position of the encoder to the counting electronics. FANUC DC Servo Motor model 5M A06B-0642-B011.
