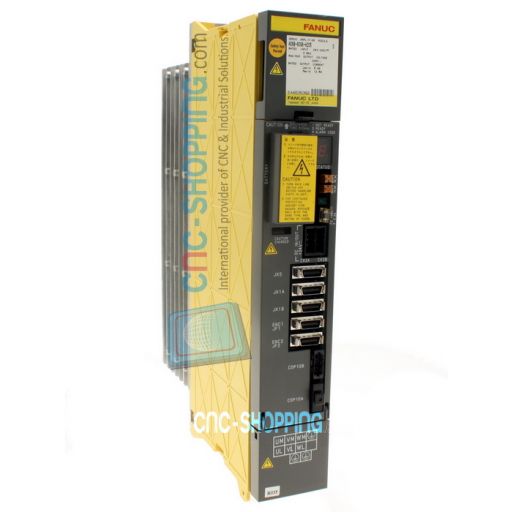

A06B-6096-H205 Fanuc Servo Amplifier Alpha SVM 2-20/40
Starting at $1,665.00 $1,665.00
Buy online your A06B-6096-H205 Fanuc Servo Amplifier Alpha SVM 2-20/40 reference A06B-6096-H205 from our US e-store Cnc-shopping USA, specialist in CNC machine-tools spare parts.
This FANUC Alpha SVM dual-axis module from the 6096 family regulates current and torque for two feed axes in FANUC-driven machine tools. It is a reliable CNC replacement component and commonly sourced as a spare part to restore axis drive performance on machining centers and turning equipment running the FANUC Alpha servo system.
Operating from the regulated DC link supplied by the matching FANUC Alpha Power Supply Module, the amplifier delivers controlled three-phase output to Alpha series feed motors. The 2-20/40 variant provides two channels identified as L and M, sized for light and medium-duty axes. Maintenance teams typically assign the 5.9 A channel to lighter linear axes and the 12.5 A channel to heavier feed axes where higher continuous current is needed.
Electrical capability aligns with FANUC’s published data for this code: DC bus acceptance of 283 to 325 VDC, power class around 3.9 kW, and a maximum motor output voltage of 230 VAC. When paired with the correct Alpha motors, the unit provides stable current regulation and consistent torque response that supports precise positioning and reliable contouring on the production floor.
Mechanical layout and connectors follow the standard 6096 SVM footprint, which simplifies field replacement in cabinets already wired for this family. In most like-for-like swaps, technicians can reuse the existing harnesses and cabinet mounting, which helps shorten recommissioning time after a drive failure. The module is made in Japan and is commonly installed on small and mid-sized machining centers and lathes using FANUC Alpha drives.
A06B-6096-H205 | FANUC | Alpha SVM 2-20/40 dual-axis servo amplifier, Japan build
Role in the system: two-channel current and torque control for FANUC Alpha feed motors using the 6096 SVM electrical and mechanical interface.
Use cases: feed axes on machining centers and turning equipment, general positioning axes under FANUC CNC control.
Key electrical data: 283-325 VDC DC bus, power class about 3.9 kW, up to 230 VAC motor output.
Channel ratings: L = 5.9 A, M = 12.5 A, two-axis configuration with the standard 6096 connectors and cabinet footprint.
In maintenance practice, this code is selected as a replacement unit when the installed drive trips on alarms, overcurrent, or fails under load. Many shops keep one in industrial spare inventory to reduce machine downtime during unplanned stops. Matching the exact code and rating allows a straightforward drop-in swap with minimal adjustments, which helps return the machine to service quickly after a drive fault.
For planned overhauls or retrofits, keeping to the correct Alpha SVM rating preserves compatibility with existing motors and controls, supporting long-term serviceability without cabinet rework. This approach is common on legacy equipment where continuity with installed FANUC Alpha hardware is essential for predictable performance and easy maintenance.
Each unit is a tested unit, verified on CNC simulators with servo motors by skilled engineers. Packaging includes ESD protection and secure cushioning suitable for industrial transit. A warranty is supplied, and worldwide shipping is available with fast dispatch depending on availability. Many stocked items ship directly from our Florida facility.
This model is suitable as an emergency spare part to help reduce unexpected downtime. Cnc-shopping USA supports sourcing of obsolete parts in the FANUC range and can propose repair service or exchange service when appropriate, helping keep older CNC installations productive over the long term.
Frequently asked questions about A06B-6096-H205:
What does 2-20/40 indicate on this module?
It identifies a dual-axis amplifier with two different current classes. In practical terms, the L channel is rated around 5.9 A and the M channel around 12.5 A, which should be matched to the corresponding Alpha servo motors on each axis.
Which power supply module should be paired with this drive?
Use a compatible FANUC Alpha Power Supply Module providing a DC bus in the 283-325 VDC range with the correct connector set for the 6096 SVM family. Always verify cabinet DC link rating and connector layout before replacement.
Is this a drop-in replacement for the same code?
Yes, when replacing an installed A06B-6096-H205, the footprint and connectors match the 6096 SVM standard, which supports a straightforward field swap. Confirm the rating label and wiring references match your original unit.
What machine types commonly use this servo amplifier?
It is frequently installed on feed axes of small and mid-sized machining centers and lathes using FANUC Alpha drives. Select it where axis current requirements align with the L and M channel ratings.
How should the L and M channels be assigned?
Assign the 5.9 A channel to lighter-duty axes and the 12.5 A channel to medium-duty axes, keeping motor current demands within the channel ratings. This pairing reduces nuisance trips and improves thermal headroom.
Frequently seen FANUC alarm topics on this amplifier family
Typical issues include overcurrent on acceleration, DC bus overvoltage or undervoltage, heatsink overtemperature, ground fault, encoder serial feedback errors, and fiber link communication faults. These alarms point to areas such as motor cabling and insulation, DC link stability, cabinet cooling, or feedback wiring rather than the amplifier alone.
What should be checked when an overcurrent or ground fault alarm appears?
Inspect your Fanuc Servo motor and power cables for insulation damage, loose terminations and contamination, then verify motor insulation to ground. If the cabling and motor test good, evaluate load mechanics for binding before condemning the drive.
What are typical overcurrent and IPM alarms on the A06B-6096-H205?
Fanuc Alarm Codes 6, 8, 9 and A indicate overcurrent by axis and can originate from the drive or the motor. The dot variants 6., 8., 9. and A. point to IPM faults which generally require drive repair or replacement. Code 7 flags a dynamic brake circuit issue and typically calls for drive service.
What are common power and discharge related alarms on this Fanuc A06B-6096-H205 drive?
Code 2 indicates low control power voltage and usually requires drive service. Code 3 flags low DC link voltage and the ALPHA power supply should be checked. Codes 4 and 5 relate to the regenerative discharge circuit, where DCSW or DCOH typically point to a drive that needs repair or replacement.
How to approach DC bus overvoltage or undervoltage alarms?
Confirm the Alpha Power Supply Module output is within the 283-325 VDC range and check incoming AC, braking resistor circuits and cabinet supply stability. Intermittent undervoltage can also stem from weak connections or failing supply components.
What if a communication or encoder feedback alarm is indicated?
Check the Optic fiber cable (TOCP200 / A66L) or serial feedback links for seated connectors, correct routing and clean optical ends where applicable. Encoder and feedback cable integrity should be verified before drive replacement, since wiring issues are common root causes.
Can a refurbished unit be used as a field replacement?
Yes, a refurbished unit with the same code can be a reliable replacement unit when function-tested and matched to the original ratings. Many plants keep a refurbished spare on the shelf to shorten repair turnaround during downtime events.
