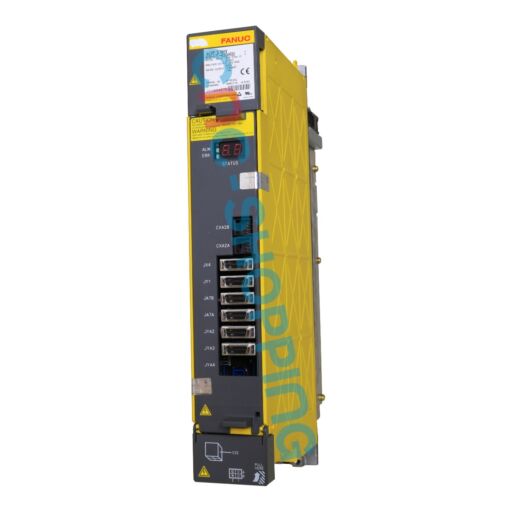

A06B-6151-H006#H580 Fanuc Alpha iSP 5.5HV Spindle Amplifier Type A2
Starting at $2,886.00 $2,886.00
Buy online your A06B-6151-H006#H580 Fanuc Alpha iSP 5.5HV Spindle Amplifier Type A2 reference A06B-6151-H006-H580 from our US e-store Cnc-shopping USA, specialist in CNC machine-tools spare parts.
This FANUC Alpha iSP 5.5HV spindle amplifier is a Type A2 module used to drive Alpha i spindle motors in FANUC-equipped machine tools. It regulates spindle current and voltage under CNC command for reliable cutting, threading and high speed finishing. Suitable as a replacement unit in production machines, rebuild projects and MRO spare programs. Many stocked items ship directly from our Florida facility.
The module with code A06B-6151-H006#H580 provides a high voltage output stage for 400 to 480 V class spindle systems. It interfaces with the appropriate FANUC power supply and the CNC through standard Alpha i connections, ensuring stable torque response, controlled acceleration and consistent spindle speed regulation. The HV rating supports machines built for the 480 V class found on North American production floors.
When the full nameplate matches, this unit is a direct field swap for the same code on older installations or after a fault event. The Type A2 mechanical and connector layout helps streamline cabinet work, and the suffix #H580 should be matched to maintain firmware and interface consistency. Common uses include machining centers, turning centers and grinders fitted with FANUC Alpha i spindle packages.
Rated input is 565 to 679 V at 6.8 kW on the DC link, with a maximum output voltage of 480 V and 14 A output current capability. In practical terms this covers a wide range of Alpha i spindle motor sizes within the 5.5HV class envelope while maintaining thermal and electrical headroom under typical duty cycles.
Reference: A06B-6151-H006-H580
Manufacturer: FANUC
Product type: FANUC spindle drive
Main function: Drives and regulates FANUC Alpha i spindle motors within the 480 V class for CNC spindle control
Applications: CNC machining centers, lathes and grinding machines equipped with FANUC Alpha i spindle systems in maintenance, retrofit and replacement scenarios
Key technical data: Alpha iSP 5.5HV Type A2 module, input 565 to 679 V at 6.8 kW, maximum output 480 V, output current 14 A, manufactured in Japan. Match full code A06B-6151-H006#H580 on the nameplate for drop-in compatibility.
In the field this unit is commonly installed to resolve spindle alarms, unstable speed, or non-start conditions traced to a failed amplifier stage. Maintenance teams often keep a refurbished unit in spare inventory to shorten repair turnaround and protect machine uptime. For planned overhauls it is also used as a drop-in replacement during cabinet refurbishments and CNC upgrades where the spindle motor family remains unchanged.
Every A06B-6151-H006#H580 offered by Cnc-shopping USA is a tested unit or refurbished unit with preventive replacement of life-limited parts such as fans, capacitors, power semiconductors and relays. Units are verified on dedicated FANUC CNC simulators with Alpha i spindle motors under dynamic load by skilled engineers, then professionally packed for industrial shipment. Immediate shipment is available on this reference depending on inventory. Most products are shipped from our Florida warehouse unless otherwise specified on the product page. Warranty is included to support reliable restart after installation.
For urgent breakdowns this module is well suited as an emergency spare to reduce unexpected downtime. Cnc-shopping USA also supports repair service and may offer exchange service options, helping extend the service life of legacy FANUC spindle systems and sustain older CNC installations when new supply is limited.
Frequently asked questions about A06B-6151-H006-H580:
How do I confirm compatibility with my machine cabinet?
Match the full code on the nameplate, including the suffix #H580, and verify the Type A2 footprint and connectors. If the spindle motor and power supply are from the Alpha i HV family, this module is typically the correct fit.
What voltage class does the 5.5HV version support?
It is designed for the 400 to 480 V class. The key electrical ratings are input 565 to 679 V on the DC link, maximum output 480 V and 14 A output capability.
Do I need to transfer parameters when replacing this module?
Spindle settings and tuning are managed by the CNC, so keep a current CNC backup before swap. After installation, verify spindle operation and alarms through the CNC as you would for any amplifier replacement.
Is this suitable for preventive maintenance or only for failure replacement?
Both. Many shops stage a stocked spare for preventive replacement during scheduled downtime, which helps avoid emergency interruptions and keeps the production floor on plan.
Can Cnc-shopping USA support repair if my core is faulty?
Yes. We provide repair service on this series and may propose an exchange service to speed up restart while your core is evaluated.
| Availability | Shipment within 3 days |
|---|---|
| Weight | 6.50 kgs |
-
