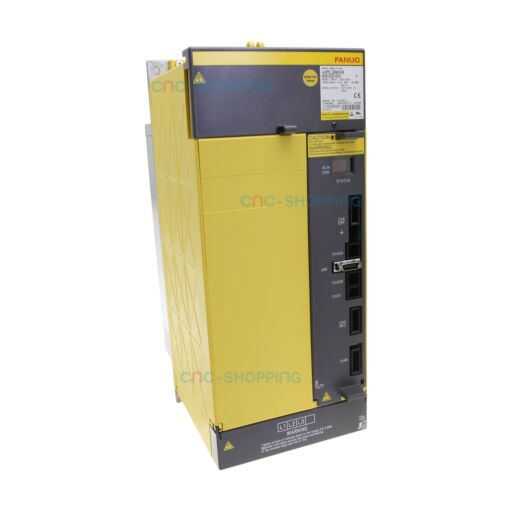

A06B-6250-H030 Fanuc Power Supply Alpha iPS 30HV-B

Rating:
100% of 100

Starting at $3,552.00 $3,552.00

Manufacturer's Suggested Retail Price (05-2019): $4,950.00
Product condition Availability Warranty
Price
Exchange service
Ships from: USA Warehouse
stock available Shipment within 3 days
6 months Warranty - Factory return he product is under warranty for a factory return to our workshop, to be repaired or replaced, throughout its warranty period.
$3,552.00 $3,552.00
Your savings on Manufacturer's suggested retail price: $1,750.00
Refurbished
Ships from: USA Warehouse
stock available Shipment within 3 days
6 months Warranty - Factory return he product is under warranty for a factory return to our workshop, to be repaired or replaced, throughout its warranty period.
$4,218.00 $4,218.00
Your savings on Manufacturer's suggested retail price: $1,150.00
New
Ships from: USA Warehouse
stock available Shipment within 3 days
12 months Warranty - Factory return he product is under warranty for a factory return to our workshop, to be repaired or replaced, throughout its warranty period.
$4,995.00 $4,995.00
Your savings on Manufacturer's suggested retail price: $450.00
Estimate Totals

Enter your destination to get a totals estimate.

  • Top-quality products backed by a warranty
  • Advanced technical support
  • Secure payment process with PDF invoice

Buy online your A06B-6250-H030 Fanuc Power Supply Alpha iPS 30HV-B reference A06B-6250-H030 from our US e-store Cnc-shopping USA, specialist in CNC machine-tools spare parts.

This FANUC Alpha i power supply feeds the DC bus for Alpha i servo and spindle amplifiers in 400 V class machine-tool cabinets. Known within the family as iPS 30HV-B or AiPS 30HV, it converts three-phase mains to a regulated high-voltage DC link and provides a stabilized 24 VDC auxiliary output for control circuits. It is a proven replacement unit for machines built with FANUC Alpha i series motion systems where stable DC bus power and reliable control power are critical for uptime.

In service, the module rectifies AC 380 to 480 V input into a DC 537 to 679 V bus sized for 36 kW applications. The 30HV rating suits 400 V installations commonly found on machining centers, turning centers and grinding machines using FANUC SVMi servo amplifiers and compatible spindle amplifiers. The design supports quick field replacement with factory-style connectors, which helps maintenance teams restore machines with minimal cabinet rework.

Technicians typically select this unit for cabinets built around the Alpha i platform where the original supply is flagged with alarms related to the DC link or 24 V control power. The B revision aligns with the iPS 30HV family, including known references such as AiPS 30HV, 30HVi and similar designations. For a drop-in replacement, match the rating plate and connector layout to A06B-6250-H030.

Reference: A06B-6250-H030

Manufacturer: FANUC

Product type: FANUC Alpha Power Supply

Main function: Provide the high-voltage DC bus and 24 VDC control power for FANUC Alpha i servo and spindle amplifier groups in 400 V cabinets.

Applications: FANUC Alpha i based machine tools such as machining centers, lathes and grinders requiring a 30HV class DC link supply for SVMi and associated spindle drives.

Key technical data: Three-phase input AC 380 to 480 V, approximately 66 A at 400 V as indicated by the rating. DC bus output in the 537 to 679 V range, power capability 36 kW. Integrated 24 VDC low-voltage output for control circuits. Manufactured in Japan. Belongs to the iPS 30HV family used with Alpha i motion systems.

On the production floor this module is commonly installed as a field replacement when the original supply causes undervoltage or DC link alarms, blown mains fuses or unstable 24 V control power. Keeping a stocked spare on site shortens downtime and supports preventive maintenance planning for equipment running Alpha i motion hardware. For retrofit tasks, matching the exact reference helps ensure proper mounting and bus connection alignment.

Each unit supplied by Cnc-shopping USA is tested on dedicated FANUC benches by skilled engineers to verify DC bus stability, protection signaling and the 24 V auxiliary output under load. Units are packed for industrial transit to protect connectors and heat sinks. Many stocked items ship directly from our Florida facility, and typical dispatch for this reference is within 3 days depending on availability.

For urgent breakdowns or legacy machines, this part can serve as an emergency spare. Cnc-shopping USA supports sourcing of obsolete FANUC parts and can assist with repair, exchange service or a refurbished unit when appropriate, helping extend the service life of installed equipment.

Frequently asked questions about A06B-6250-H030:

What systems is this iPS 30HV-B used with?
It is used with FANUC Alpha i motion platforms, supplying the DC link for servo amplifier modules (SVMi) and compatible Alpha i spindle amplifiers in 400 V machine cabinets.

Can it replace other 30HV variants?
Use it as a drop-in replacement when your existing label matches A06B-6250-H030. For other 30HV variants, confirm connector orientation, DC bus rating and revision level against the machine’s documentation before substitution.

What mains supply does it require?
The module is designed for three-phase AC 380 to 480 V, with a typical current of about 66 A at 400 V. Ensure the cabinet mains and upstream protection meet these requirements.

Does it provide 24 V control power?
Yes, it includes a 24 VDC auxiliary output for machine control circuits. Verify the required load against the machine builder’s specification to confirm suitability.

Where do units ship from?
Many stocked items ship from our Florida warehouse unless otherwise specified on the product page, with dispatch commonly within 3 days depending on inventory.

More Information
AvailabilityShipment within 3 days
Weight10.00 kgs
