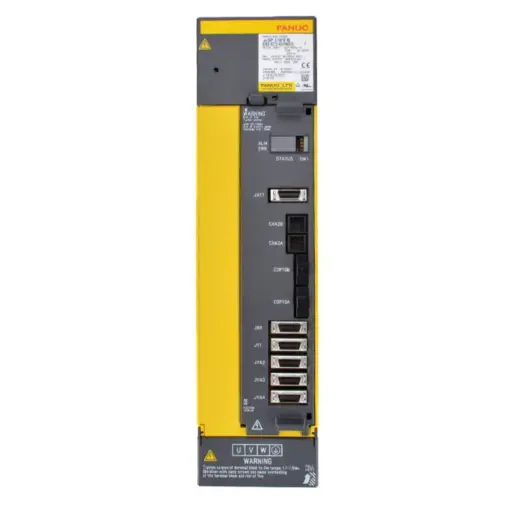

A06B-6272-H011#H610 Fanuc Servo spindle Amplifier iSP11HV-B

Buy online your A06B-6272-H011#H610 Fanuc Servo spindle Amplifier iSP11HV-B from our US e-store Cnc-shopping USA, specialist in CNC machine-tools spare parts.

The FANUC A06B-6272-H011#H610 is a high-voltage spindle servo amplifier from the FANUC i-Series, designed to control CNC machine tool spindles with exceptional precision. It regulates spindle torque, speed, and orientation, ensuring reliable machining performance and making it an ideal replacement drive for machining centers, CNC lathes, and grinding machines equipped with FANUC control systems.

The iSP11HV-B model is designed for 400 VAC high-voltage installations and communicates with the CNC through the FANUC fiber-optic interface. It delivers fast response times and accurate spindle control for turning, milling, grinding, rigid tapping, and threading applications where precise acceleration, deceleration, and spindle orientation are essential. The H610 suffix identifies a specific hardware variant and should match the original module to ensure complete compatibility.

Installed inside the machine's electrical cabinet, the amplifier operates with compatible FANUC spindle motors and provides closed-loop control using the machine's feedback system. Its ability to deliver stable torque at low speeds and maintain accurate spindle speed at high RPM helps improve machining accuracy, surface finish quality, and production repeatability.

The FANUC A06B-6272-H011#H610 accepts a rated input voltage of 537 to 679 VAC with a rated input current of 23 A at 565 VAC, along with a 24 VDC auxiliary power supply. It delivers a maximum output voltage of 480 VAC and a rated output of 400 VAC three-phase, operating over a frequency range of 1 Hz to 1.5 kHz with a rated output current of 26 A. Manufactured in Japan, this spindle amplifier is built to meet the demands of continuous industrial operation.

Ready to replace your defective FANUC A06B-6272-H011#H610 Spindle Servo Amplifier, this unit is an excellent solution for persistent spindle alarms, unstable spindle speed, orientation faults, or drive failures. Each amplifier can be supplied as a fully tested replacement, verified by experienced engineers on FANUC CNC simulators with compatible spindle motors to confirm communication, enable sequences, and dynamic performance before shipment.

Supplied with a warranty, the amplifier is carefully packaged in anti-static, shock-resistant materials for safe international transportation. CNC-Shopping also offers repair services, exchange programs, and sourcing solutions for obsolete FANUC components, helping maintenance teams minimize downtime and extend the service life of legacy CNC equipment.

Frequently asked questions about A06B-6272-H011-H610:

Is this module intended for 400 VAC machines?
Yes, the HV designation indicates the high-voltage class typically used on 400 VAC installations. Always confirm your machine’s supply and spindle motor rating before replacement.

How does it connect to the CNC control?
It uses FANUC’s fiber-optic link found on i-series systems, allowing fast communication for spindle commands and feedback. Verify optical cabling and node assignment during commissioning.

Can it replace another iSP11HV-B with a different suffix?
Models within the same rating family can be similar, but option codes matter. Match the H610 variant and ensure parameters and connectors align with the original build.

What symptoms suggest the spindle amplifier is faulty?
Frequent amplifier alarms, inability to orient, or unstable rpm under load are typical signs. Swapping in a tested unit is a common troubleshooting step to isolate the fault.
