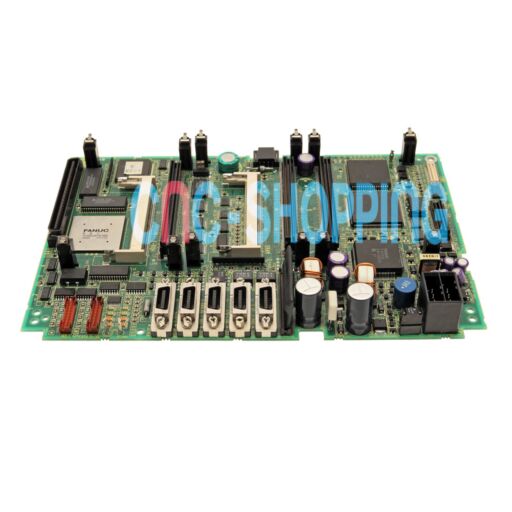

A20B-8100-0135 Fanuc 18i Model A Mainboard

Rating:
100% of 100

Starting at $1,665.00 $1,665.00

Manufacturer's Suggested Retail Price (11-2025): $3,150.00
Product condition Availability Warranty
Price
Exchange service
Ships from: USA Warehouse
stock available Immediate shipment Estimate my delivery
6 months Warranty - Factory return he product is under warranty for a factory return to our workshop, to be repaired or replaced, throughout its warranty period.
$1,665.00 $1,665.00
Your savings on Manufacturer's suggested retail price: $1,650.00
Refurbished
Ships from: USA Warehouse
stock available Immediate shipment
6 months Warranty - Factory return he product is under warranty for a factory return to our workshop, to be repaired or replaced, throughout its warranty period.
$2,220.00 $2,220.00
Your savings on Manufacturer's suggested retail price: $900.00
Estimate Totals

Enter your destination to get a totals estimate.

  • Top-quality products backed by a warranty
  • Advanced technical support
  • Secure payment process with PDF invoice

Buy online your A20B-8100-0135 Fanuc 18i Model A Mainboard reference A20B-8100-0135 from our US e-store Cnc-shopping USA, specialist in CNC machine-tools spare parts.

The FANUC A20B-8100-0135 is the main board of the Fanuc Series 18i Model A control, the board every other card in the CNC unit plugs into. When it fails, the control usually stops with a non-resettable system alarm or refuses to boot, which is why this master board is one of the most requested replacement units for 18i-TA lathes and 18i-MA machining centers still running on the production floor.

On the 18i-A, the CNC unit is LCD-mounted, so the main board sits directly behind the LCD/MDI operator panel (Yellow backplane in plastic). It carries the main CPU card, the axis control board with its servo module, the display control card, and the FROM, SRAM and DRAM memory modules. The board itself also hosts the PMC control circuit, the FANUC bus and local bus logic, and the memory backup circuit that keeps parameters and part programs alive when the machine is powered off.

Connections handled at the main board include the two RS-232C ports JD36A and JD36B, the serial spindle link, the I/O Link on JD1A, the JA40 and JA41 connectors, and the memory card slot on MCRD1 or PCMCIA2. A main board fault can therefore show up in many different ways, from a blank screen at power-up to PMC, bus or communication alarms.

Compatibility is strict within the Model A family. FANUC uses a separate main board for each variant: A20B-8100-0130 for the 16i, A20B-8100-0135 for the 18i, A20B-8100-0140 for the 160i and A20B-8100-0145 for the 180i with PC function. The 18i board is identified by ID code C5 on the system configuration screen, which makes it easy to confirm what is installed before ordering.

Reference: A20B-8100-0135

Manufacturer: FANUC

Product type: Fanuc 18i CNC Series, FANUC Master board

Main function: Main board of the Fanuc 18i Model A CNC unit, hosting the CPU card, axis control card, display control card and memory modules

Applications: CNC lathes and machining centers built on 18i-TA and 18i-MA controls, rebuild and retrofit projects, stocked spare for legacy Fanuc installations

Key technical data: Fanuc Series 18i Model A main board without PC function, board ID C5, installed in the LCD-mounted CNC unit behind the LCD/MDI panel, made in Japan. Not interchangeable with the 16i, 160i or 180i main boards.

According to the FANUC 16i/18i/160i/180i Model A maintenance manual, the main board is the part to suspect when the control shows certain system alarms. These alarms cannot be cleared with the RESET key, and they leave the machine down until the faulty hardware is found. The most direct ones are alarm 951 PMC WATCH DOG ALARM, alarm 975 BUS ERROR and alarm 976 L-BUS ERROR, for which FANUC points to the main board itself.

Other alarms often end with a main board replacement once the CPU card, memory modules and option boards have been checked. These include alarm 930 CPU INTERRUPT, alarm 950 PMC SYSTEM ALARM, alarm 973 NON MASK INTERRUPT, alarm 974 F-BUS ERROR, and the PMC-RB messages PC004, PC006, PC009 and PC010 CPU ERR. Recurring SRAM parity alarms 910 and 911, or data loss after a long shutdown, can also come from the memory backup circuit on the board.

In the field, this board is typically ordered when a machine is down with one of these alarms, when the status LEDs on the main board do not come up in the normal pattern at power-up, or when a rebuild shop needs a known-good board to finish a control. Plants running several 18i-A machines often keep one on the shelf as a stocked spare, because a main board failure stops the whole control and lead times on obsolete FANUC electronics can be long. Before any swap, the SRAM content (parameters, programs, offsets and PMC data) should be backed up, as FANUC warns that memory can be lost during main board replacement.

Each A20B-8100-0135 is tested by skilled engineers on appropriate CNC test benches or simulators to verify proper operation before dispatch, then carefully packed for industrial shipping. Every unit comes with a warranty. Depending on availability, it is commonly dispatched from our Florida warehouse, with worldwide shipping available.

The Fanuc 18i Model A is no longer in production, yet many of the machines built around it are still mechanically sound and worth keeping in service. Having a tested replacement unit available can turn a long outage into a short stoppage. Cnc-shopping USA helps maintenance teams source obsolete Fanuc CNC parts, and repair service or exchange service options may be available for this board on request.

Frequently asked questions about A20B-8100-0135:

Which Fanuc alarms point directly to the 18i main board?
The FANUC maintenance manual lists the main board as the cause of alarm 951 PMC WATCH DOG ALARM, alarm 975 BUS ERROR and alarm 976 L-BUS ERROR. On an 18i-A showing one of these alarms, the A20B-8100-0135 is the first board to look at.

What does alarm 930 CPU INTERRUPT mean on a Fanuc 18i-A?
It means the CPU received an interrupt that should never occur in normal operation. FANUC names the main board or the CPU card as the likely cause. If the alarm clears after a power cycle and does not return, electrical noise should be checked before replacing hardware.

Is alarm 950 PMC SYSTEM ALARM always a main board failure?
Not always. On a PMC-RB without C language, FANUC lists the CPU card, the DRAM module, the FROM module and the main board as possible causes. When the modules check out and the alarm persists, the main board is the remaining suspect.

Can SRAM parity alarms 910 and 911 come from the main board?
Yes. These alarms are often cleared by a memory reset, a new backup battery or a new SRAM module. If the alarm keeps coming back, or the machine loses its data after sitting unused, the memory backup circuit on the main board may be at fault.

The screen stays blank at power-up. Could it be the main board?
It can be. FANUC recommends checking the status LEDs on the main board first. If they do not light in the normal pattern, the main board or the display control card is faulty. If the LEDs look normal, the LCD, the inverter board or the display power supply is the more likely cause.

Will the A20B-8100-0135 fit a 16i, 160i or 180i control?
No. Each Model A variant uses its own main board, and the A20B-8100-0135 is specific to the 18i. Check the Fanuc part number on your existing board or the ID code C5 on the system configuration screen before ordering.
