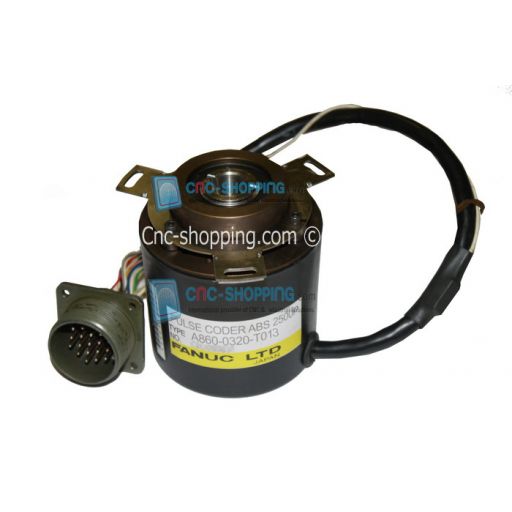

A860-0320-T013 Fanuc Pulse Coder ABS 3000P

FANUC Pulse coder reference FANUC A860-0320-T013 for sale. This FANUC encoder A860-0320-T013 is an absolute encoder and the resolution of this encoder is 3000 pulses. This encoder is installed on FANUC Motor type S. This encoder A860-0320-T013 is ready to repace your defective FANUC pulse coder  mounted on your FANUC Servo motor. This FANUC pulse coder comes with a warranty.

A metal disc containing a set of concentric rings of openings is fixed to an insulating disc, which is rigidly fixed to the shaft. A row of sliding contacts is fixed to a stationary object so that each contact wipes against the metal disc at a different distance from the shaft. As the disc rotates with the shaft, some of the contacts touch metal, while others fall in the gaps where the metal has been cut out. The metal sheet is connected to a source of electric current, and each contact is connected to a separate electrical sensor. The metal pattern is designed so that each possible position of the axle creates a unique binary code in which some of the contacts are connected to the current source (i.e. switched on) and others are not (i.e. switched off). FANUC A860-0320-T013
