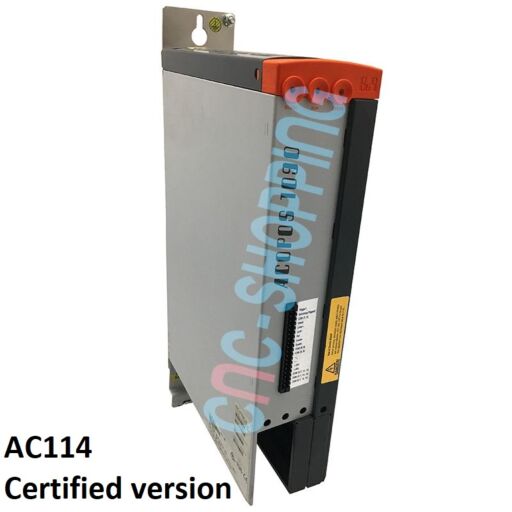

B&R AUTOMATION ACOPOS 1090 8V1090.00-2 Servo Drive 8.8A 4kW - AC114 Certified version

Starting at $1,998.00 $1,998.00

Product condition Availability Warranty
Price
Refurbished
Ships from: USA Warehouse
stock available Shipment within 3 days Estimate my delivery
4 months Warranty - Factory return he product is under warranty for a factory return to our workshop, to be repaired or replaced, throughout its warranty period.
$1,998.00 $1,998.00
Estimate Totals

Enter your destination to get a totals estimate.

  • Top-quality products backed by a warranty
  • Advanced technical support
  • Secure payment process with PDF invoice

Buy online your B&R AUTOMATION ACOPOS 1090 8V1090.00-2 Servo Drive 8.8A 4kW - AC114 VERSION CERTIFIED reference 8V1090.00-2 AC114 from our US e-store Cnc-shopping USA, specialist in CNC machine-tools spare parts.

This B&R ACOPOS 1090 axis drive is a cabinet-mounted servo module used on B&R motion systems to power and control a single axis on CNC machine tools and automated equipment. It delivers regulated current to B&R servo motors, supports fieldbus and encoder feedback through front plug-in cards, and is commonly sourced as a replacement unit, spare part or refurbished unit to restore machine uptime with minimal wiring changes.

The model 8V1090.00-2-AC114 is the base unit of the series with an integrated line filter and integrated braking resistor. Operating on 3 x 400-480 V mains, it provides a nominal 8.8 A output for axes up to 4 kW. The built-in components reduce external hardware, simplify panel layouts, and shorten field replacement time during unplanned stops.

The AC114 version certified variant maintains rated performance up to 45 C ambient inside the enclosure, which helps keep the axis at nominal output in warm control cabinets on the production floor. This temperature capability is practical for machine rooms where ventilation is limited and drives run continuously.

Front plug-in compatibility enables a direct fit in existing B&R motion racks. Supported options include 8AC114 PowerLink V2 or 8AC110.60-2 CAN for networking, plus feedback cards such as 8AC120.60-1 EnDat, 8AC122.60-1 resolver, 8AC123.60-1 incremental/SSI, and 8AC130.60-1 digital I/O. During a drive swap, technicians typically transfer the current interface card set to the new module, reconnect cables, and restore parameters from the controller.

Used across B&R-based motion cabinets, this unit supplies the motor with controlled current while handling regenerative energy internally via the brake resistor. It is frequently deployed on feed axes and auxiliary axes, as well as in retrofit work where a CNC replacement component is preferred without redesigning the electrical panel.

Reference: 8V1090.00-2 AC114 Approved version

Manufacturer: B&R AUTOMATION

Product type: ACOPOS 1090 servo drive for single-axis control

Main function: Regulated current supply for B&R servo motors with internal braking energy management

Applications: Feed axes, handling axes and retrofit projects on B&R motion-controlled CNC machines and automated equipment

Key technical data: 3 x 400-480 V mains, nominal 8.8 A motor output up to 4 kW, integrated line filter and braking resistor, AC114 version certified for 45 C cabinet ambient, accepts ACOPOS plug-in cards including 8AC114 PowerLink V2, 8AC110.60-2 CAN, 8AC120.60-1 EnDat, 8AC122.60-1 resolver, 8AC123.60-1 incremental/SSI, 8AC130.60-1 digital I/O

In maintenance environments this model is selected to minimize machine downtime after trips on overcurrent, fieldbus faults or internal errors. The usual approach is to move the existing front cards to the replacement unit, check wiring, reload the axis parameters, and bring the machine back online with minimal adjustments. Many teams keep a stocked spare in their industrial spare inventory for planned shutdowns and preventive changeouts.

Each unit can be functionally tested on CNC simulators with servo motors by skilled engineers, including feedback and fieldbus checks when applicable. Drives are packed in ESD-safe materials and protected for industrial transport, supplied with a warranty. Depending on availability, products are commonly dispatched from our Florida warehouse with worldwide shipping options.

This item is well suited as an emergency spare and can help keep older B&R installations running when the original becomes an obsolete part. Cnc-shopping USA can assist with hard-to-find ACOPOS modules and can organize repair service or an exchange service to reduce unexpected downtime and extend machine life.

Frequently asked questions about 8V1090.00-2-AC114:

Is this unit a practical drop-in for an ACOPOS 1090 8V1090.00-2 module?
Within the ACOPOS 1090 family it is used as the AC114 version certified variant and typically installs in the same cabinet location. In most replacements the existing front plug-in cards (comaptible for 8AC114 Powerlink modules), wiring and parameters are reused to match the machine configuration.

What mains voltage and axis rating does it support?
It operates on 3 x 400-480 V AC and is intended for axes up to 4 kW with a nominal motor output current of 8.8 A.

Which fieldbus and feedback options are supported?
Networking can be handled by 8AC114 PowerLink V2 or 8AC110.60-2 CAN. Feedback support depends on the installed front card, with options for EnDat, resolver, incremental and SSI using the corresponding ACOPOS modules.

Does it include a line filter and brake resistor?
Yes, both are integrated in the base unit. This reduces external components, streamlines cabinet wiring, and speeds up field replacement.

What is the AC114 Certified version / AC114 Approved version ?
The AC114 version certified module allows 8AC114 PowerLink V2 interface module to be compatible on your 8V1090.00-2 base unit.

How is it used during urgent machine recovery?
Technicians move the original interface cards to the replacement unit, connect cables, and restore parameters from the controller backup. This approach shortens repair turnaround and helps recover machine uptime quickly.

More Information
AvailabilityShipment within 3 days
Weight7.00 kgs
