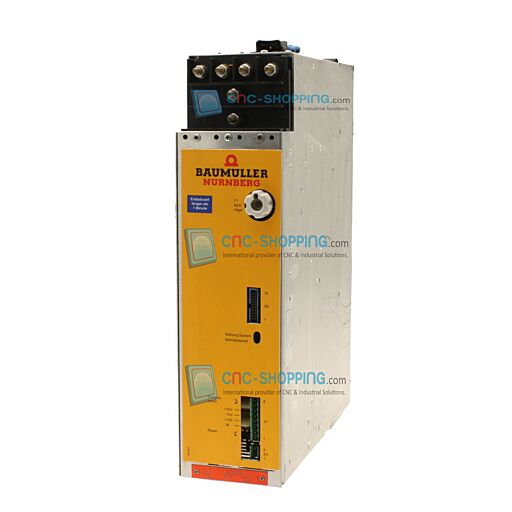

main product photo

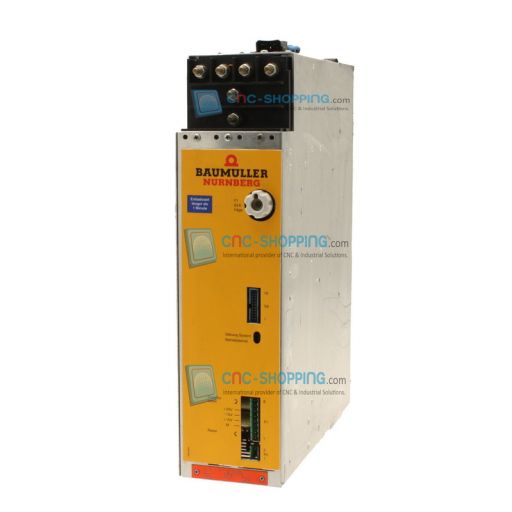

BAUMULLER BUG 2-60-30-B-003 Power supply unit

Be the first to review this product

Starting at $1,665.00 $1,665.00

Product condition Availability Warranty
Price
Refurbished
Ships from: FRANCE Warehouse
stock available Shipment within 3 days
3 months Warranty - Factory return The product is under warranty covering return to the workshop, for repair in our workshops or replacement, throughout the contractual warranty period.
$1,665.00 $1,665.00
  • Great quality products warranty
  • Specialised tech service
  • Secured payment and online invoice

BAUMULLER power supply unit reference BUG 2-60-30-B-003 (BUG2-60-30-B-003) for sale online on Cnc-shopping. The characteristics of this BAUMULLER power supply model BUG 2 are :

- Connection voltage : 3 x 230VAC
- Intermediaire circuit power : 18kW
- Intermediate cicuit rated voltage : 300V
- Rated current : 60A
- Peak current : 180A

This BAUMULLER power supply unit reference BUG 2-60-30-B-003 (BUG2-60-30-B-003) is ready to replace your defective part mounted on your machine tools and comes with a warranty.

The intermediate circuit, which supplies the connected servo units, is fed from the mains via an external matching transformer and the uncontrolled bridge rectifier.If no measures were taken, the intermediate circuit capacitors would lead to inadmissibly high charging current surges when you switch on the mains current. Mains transformers of up to 5 kVA automatically reduce the charging current surge to a non-dangerous level. In the case of large transformers, you must install a starting current limitation device on the input side. This device is shunted out after the start-up stage. The internal switching power supply generates the supply voltages for the connected servo units from the intermediate circuit or from an external auxiliary voltage. In addition, permanent monitoring is carried out of the temperature, the intermediate circuit voltage, the supply voltages and the ballast function. In the case of inadmissible values, the system issues a message that is further-processed appropriately. The system indicates these messages to you directly by means of LEDs. When the drive is operating in regenerative mode, it feeds back to the intermediate circuit and raises its voltage. If this voltage exceeds an impermissibly high value, the integrated ballast transistor switches the ballast resistor (which can be external if desired) to the intermediate circuit and removes the excess energy. BUG 2-60-30-B-003 (BUG2-60-30-B-003)
More Information
AvailabilityAvailable in 5 to 8 days
Weight14.00 kgs
