Beckhoff BK9103 PROFINET RT bus coupler

Buy online your Beckhoff BK9103 PROFINET RT bus coupler from our e-store Cnc-shopping, specialist in CNC machine-tools spare parts.

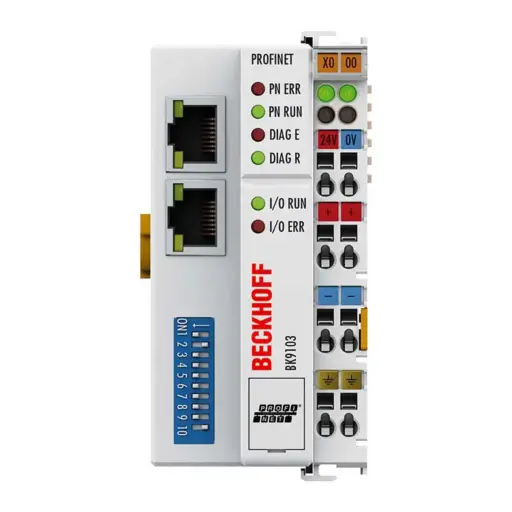

The BECKHOFF BK9103 is a PROFINET RT Bus Coupler designed to connect Beckhoff KL-series Bus Terminals to a PROFINET Industrial Ethernet network. It provides reliable cyclic data exchange between modular K-bus I/O terminals and compatible PLCs, CNC systems and industrial controllers, making it a practical CNC replacement component and spare part for machine-tool maintenance.

The BK9103 operates as a PROFINET IO-Device and supports 10 Mbps and 100 Mbps Ethernet communication through 2 × RJ45 ports. Its integrated 3-port switch allows I/O stations to be connected in a convenient line topology, helping reduce cabinet wiring and installation costs. The maximum distance between two couplers is 100 m, and up to 20 BK9103 couplers can be cascaded for applications requiring extended line configurations.

This Beckhoff Bus Coupler supports between 1 and 64 terminals, or up to 255 terminals with K-bus extension, depending on the system configuration and available K-bus capacity. The connected terminals are automatically recognized, with their inputs and outputs assigned to the process image by the Bus Coupler.

The BK9103 is designed for DIN-rail mounting in IP20 control cabinets and uses a 24 VDC supply. Configuration and network integration can be performed using the appropriate PROFINET configuration tools, with IP addressing supported through DIP-switch configuration or DHCP depending on the installation.

The BK9103 is commonly used in CNC machines, PLC cabinets, production lines and industrial automation systems where Beckhoff KL I/O must communicate with a PROFINET controller. It is a suitable replacement unit when a failed Bus Coupler causes loss of communication with the connected I/O terminals, allowing the existing KL terminal stack to remain in place without replacing the complete I/O system.

Keeping a tested BK9103 in industrial spare inventory can help reduce machine downtime and accelerate maintenance operations. It is also suitable for retrofit projects where existing Beckhoff K-bus terminals need to be integrated into a PROFINET network.

Each unit supplied by Cnc-shopping can be function tested on dedicated PROFINET test benches or simulators before shipment. Units are securely packaged for industrial transport and supplied with a commercial warranty, with fast dispatch depending on availability and worldwide shipping.

The BECKHOFF BK9103 can also be sourced as an emergency spare for legacy and mixed-vendor automation systems. Cnc-shopping can assist with obsolete parts, repair services and exchange services when available, helping extend the service life of existing CNC and industrial control equipment.

Frequently asked questions about BK9103:

Does BK9103 work with EtherCAT EL terminals?
No. BK9103 serves the Beckhoff Bus Terminal System with K-bus, typically the KL series. EtherCAT EL terminals require an EtherCAT coupler such as EK-series with E-bus.

Can it be used with Siemens S7-1200 or S7-1500 controllers?
Yes, it operates as a PROFINET IO-Device and integrates via a GSDML file in the SIMATIC engineering environment. Assign the device name with DCP and map the process data according to your terminal stack.

How many terminals can the coupler handle?
A typical installation supports a substantial number of Bus Terminals, commonly up to several dozen modules, as long as the K-bus current capacity and channel count are within specifications. Always size the 24 V DC supply and terminal mix accordingly.

Does BK9103 support PROFINET IRT?
It supports PROFINET RT for deterministic cyclic I/O in machine cabinets. If your application requires synchronized IRT motion profiles, verify requirements with the controller and consider dedicated motion hardware.

What should be checked when replacing a failed coupler?
Confirm the terminal order, device name, and GSDML configuration so the channel mapping remains unchanged. Verify 24 V DC supply integrity and observe diagnostic LEDs for link and I/O status during power-up.
