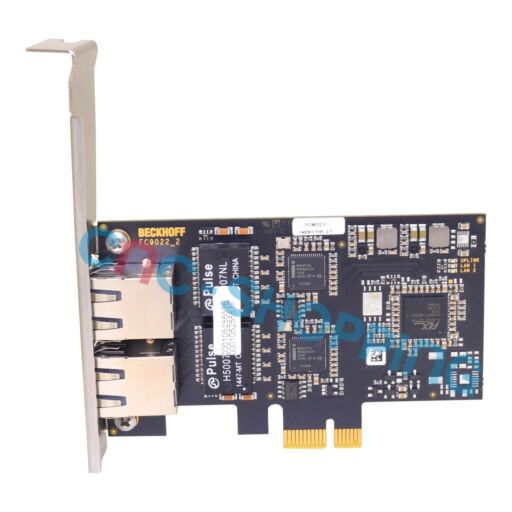

Beckhoff FC9022 Gigabit Ethernet card

Buy online your Beckhoff FC9022 Gigabit Ethernet card from our e-store Cnc-shopping, specialist in CNC machine-tools spare parts.

Summary:

The BECKHOFF FC9022 is an industrial Gigabit Ethernet interface card designed for Beckhoff IPCs and TwinCAT-based control systems. It provides reliable high-speed network connectivity for CNC controls, PLCs, industrial PCs, and HMI stations, enabling stable communication with engineering workstations, SCADA systems, MES platforms, and plant networks.

Featuring two RJ45 Ethernet ports, the FC9022 supports 100BASE-T and 1000BASE-T Ethernet with data transfer rates of 100/1000 Mbit/s over shielded Cat5e or Cat6 cabling up to 100 meters. Installed via a PCI Express® x1 interface, it is compatible with Windows-based environments running TwinCAT 2 or TwinCAT 3, using either standard Windows drivers or Beckhoff-specific drivers.

The card supports all Ethernet protocols based on IEEE 802.3 and can operate with TwinCAT real-time drivers for EtherCAT and real-time Ethernet, with drivers configurable independently for each channel. Integrated diagnostics include two LED indicators per port for link and activity status, simplifying troubleshooting and commissioning.

Commonly used in CNC control cabinets and industrial automation systems, the FC9022 provides dedicated LAN connectivity for NC program transfers, machine diagnostics, remote service access, and production data acquisition. It is also frequently employed to separate office network traffic from control traffic or to replace a failed onboard network interface.

With compact single-slot dimensions of approximately 62 × 100 mm and an operating temperature range of 0 to 55°C, the FC9022 is well suited to demanding industrial environments. Manufactured in Germany, it offers a dependable solution for maintenance, retrofit projects, and emergency replacements.

Each card supplied by Cnc-shopping is tested by qualified engineers using IPC test benches and CNC communication simulators, packaged in ESD-safe protective materials, and provided with applicable warranty coverage. Repair, exchange, and obsolete-part sourcing services may also be available to help maintain both legacy and current Beckhoff-based installations while minimizing machine downtime.

Frequently asked questions about FC9022:

Can the FC9022 be used with TwinCAT 2 and TwinCAT 3?
Yes, it is commonly integrated with Windows-based IPCs running TwinCAT 2 or TwinCAT 3. Always confirm driver support and version alignment with your IPC image before commissioning.

Is the FC9022 suitable for EtherCAT master tasks?
It can be used in TwinCAT environments, but EtherCAT master operation depends on approved chipsets and drivers. Check the Beckhoff TwinCAT NIC compatibility list to validate real-time suitability for your application.

What cabling should be used with the FC9022?
Use industrial-grade Cat5e or Cat6 shielded twisted pair with RJ45 connectors for 1000BASE-T. Maintain proper cable routing and shielding inside the cabinet to minimize noise and link instability.

Is this a drop-in replacement for other FC90xx cards?
Use the FC9022 as a direct replacement unit for the same reference. For substitutions across different models, verify mechanical fit, driver compatibility and network role before installation.

How should maintenance teams manage spares for the FC9022?
Keeping at least one stocked spare per control cabinet family is recommended to shorten repair turnaround. This approach reduces machine downtime when a NIC failure interrupts controller communications.
