FANUC A16B-1212-0720 Relay Board

Buy online your FANUC A16B-1212-0720 Relay Board from our e-store Cnc-shopping, specialist in CNC machine-tools spare parts.

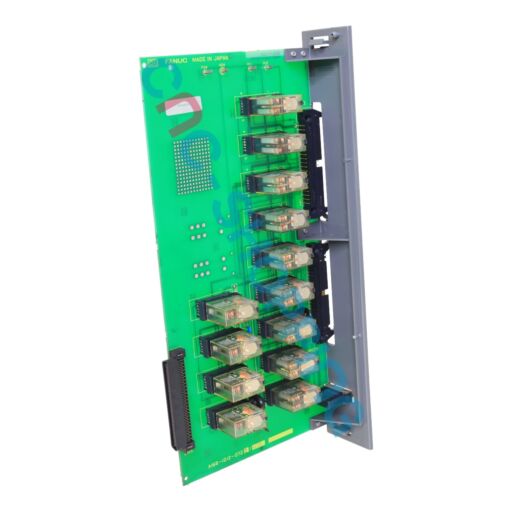

The FANUC A16B-1212-0720 is a relay output interface board designed for use in FANUC CNC electrical cabinets. It acts as a discrete output module that switches machine actuators under PMC control, providing reliable and isolated contact switching for solenoids, contactors, pumps, lubrication units, clamping devices, and other auxiliary equipment on CNC machine tools.

This board routes PMC output signals to electromechanical relays capable of handling real machine loads while maintaining galvanic isolation between the CNC control logic and the field wiring. This isolation helps protect the control system and ensures stable operation of machine auxiliaries. The A16B-1212-0720 is typically installed in the CNC I/O section of the electrical cabinet and connected through standard FANUC connectors.

As part of the FANUC A16B board family, this module is commonly used in legacy and mid-generation FANUC-controlled machines, including machining centers, lathes, grinders, and retrofit projects. It serves as the relay layer for discrete outputs defined in the PMC ladder logic and is often involved in controlling coolant systems, hydraulic units, and machine clamping functions.

In maintenance and troubleshooting situations, the board is frequently replaced when outputs become intermittent, chatter, fail to latch, or remain permanently energized due to worn relay contacts. Using the exact A16B-1212-0720 reference ensures compatibility with the existing wiring, connector layout, and PMC assignments, allowing maintenance teams to perform a fast and straightforward field replacement with minimal disruption.

Manufactured in Japan, the board is designed for continuous industrial operation and is often kept in spare inventory by maintenance departments to reduce downtime during unexpected machine failures. Tested, refurbished, replacement, repair, and exchange options may be available depending on availability, helping support long-term maintenance of older FANUC-controlled equipment.

Frequently asked questions about A16B-1212-0720:

How do I confirm suitability for my machine?
Match the full board code on your existing PCB and check connector positions against your cabinet harness. If your machine was originally fitted with A16B-1212-0720, this is the correct drop-in replacement unit.

Are parameters or ladder changes needed after replacement?
For a like-for-like swap using the exact same reference, parameter and PMC ladder settings typically remain unchanged. After installation, verify I/O mapping and perform basic output checks during power-up.

What are typical failure symptoms of this board?
Common signs include outputs not energizing under command, stuck outputs with welded contacts, or intermittent operation causing sporadic actuator behavior. Technicians often confirm by swapping with a known tested unit to isolate the fault.

Can this unit be supplied as refurbished with warranty?
Yes, depending on availability it can be supplied as a refurbished unit that has been function-tested and covered by a standard warranty. Contact us for current lead times, repair options and exchange program details.
