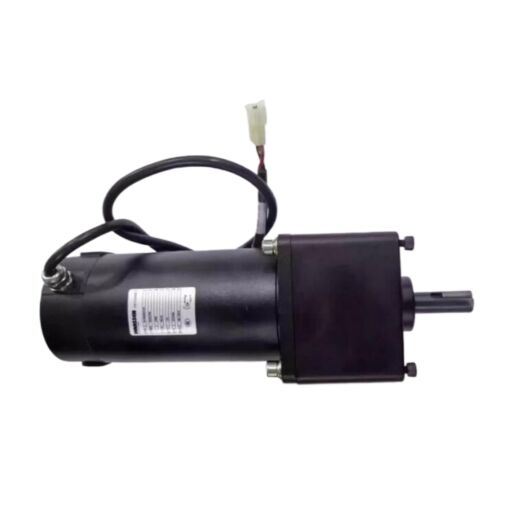

Haas 93-2597 Umbrella Tool Changer and Shuttle Motor Substitute version

Buy online your Haas 93-2597 Umbrella Tool Changer and Shuttle Motor Replacement from our US e-store Cnc-shopping USA, specialist in CNC machine-tools spare parts.

The HAAS 93-2597 is an OEM replacement motor designed for umbrella-style automatic tool changers (ATC) used on Haas vertical machining centers. It plays a critical role in the tool change process by driving the indexing mechanism or shuttle movement required to position tools accurately during automatic tool exchanges.

This motor converts control commands from the machine into the rotary motion needed to move the umbrella carousel and shuttle assembly. Working in conjunction with the machine’s ATC control system and safety interlocks, it helps ensure smooth and reliable tool changes while maintaining proper alignment throughout the cycle.

The 93-2597 is commonly installed when the original motor exhibits symptoms such as indexing hesitation, incomplete shuttle travel, ATC-related overcurrent alarms, or intermittent tool change failures. Replacing the unit with the same OEM reference allows technicians to retain the original mounting configuration, wiring, connectors, and mechanical interfaces, reducing installation time and simplifying maintenance procedures.

Built to the specifications of Haas umbrella-style tool changers, the motor is designed to withstand the frequent start-stop cycles typical of automatic tool changing operations. It is suitable for use in production environments where exposure to coolant mist and shop contaminants is common, provided the machine’s protective covers and enclosures are properly maintained.

This component is frequently stocked as a spare part for preventive maintenance and emergency repairs on Haas machines equipped with umbrella ATC systems. Keeping a replacement motor available helps reduce machine downtime and allows rapid recovery from tool changer failures that could otherwise interrupt production.

Each unit can be inspected and tested on dedicated CNC test equipment to verify operational performance before shipment. Protective packaging helps safeguard the shaft interface and electrical connections during transport. The HAAS 93-2597 is a practical solution for maintaining the reliability of existing umbrella-style tool changer systems and extending the service life of older Haas machining centers.

Frequently asked questions about 93-2597:

Which machines use this motor?
It is intended for Haas models equipped with an umbrella-style tool changer that specify 93-2597 in their parts lists. Check your machine documentation or the ATC assembly tag to confirm the exact code before ordering.

Is it a drop-in replacement?
When the original part number on the machine matches 93-2597, the unit is installed in the same location with the original Haas mounting points and connectors, keeping the ATC mechanism layout unchanged.

Do parameters need adjustment after replacement?
For a like-for-like swap on machines that list this code, the control logic remains the same. After installation, perform the standard ATC homing and functional checks as per Haas service practices.

Can this be used as a preventive spare?
Yes. Many maintenance teams keep a stocked replacement unit to cover ATC failures and schedule a quick changeover during planned stops, limiting tool change related downtime.

Do you offer refurbished options?
Depending on sourcing, a refurbished unit or repair service may be available. Contact us with your core details and machine model to review options and turnaround.
