HEIDENHAIN 296 800-01 Adapter for Handwheel with Cable 10m without a plug

Buy online your HEIDENHAIN 296 800-01 Adapter for Handwheel with Cable 10m without a plug from our e-store Cnc-shopping, specialist in CNC machine-tools spare parts.

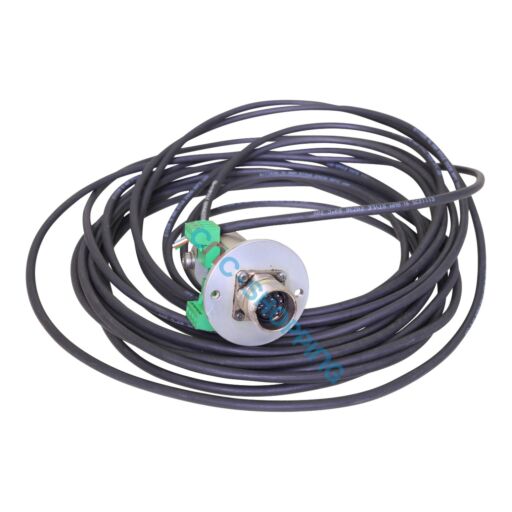

The HEIDENHAIN 296 800-01 is a connection cable designed for HEIDENHAIN HR portable electronic handwheels. It provides the interface between the handwheel and the CNC control cabinet, allowing operators to perform manual axis jogging, workpiece setup, tool touch-off, and machine positioning. With a 10-meter length, the cable is supplied without a machine-side connector, allowing technicians to terminate it with the connector type specified by the machine manufacturer. It is a reliable replacement component for maintenance teams servicing HEIDENHAIN-controlled CNC equipment.

The cable transmits the signals required between the portable HR handwheel and the CNC control, enabling precise manual movement of machine axes during setup and maintenance operations. Its 10-meter reach provides operators with the flexibility to move around medium and large machine tools while maintaining a safe working distance from the control cabinet. The open cable end allows the correct machine-side connector and pin configuration to be installed according to the OEM's wiring specifications.

Commonly used with HEIDENHAIN HR portable handwheels and TNC CNC controls, this cable is found on CNC milling machines, lathes, grinding machines, and other precision machine tools. It is frequently selected to replace damaged or intermittent cables or for retrofit projects requiring a longer routing path between the handwheel and the electrical cabinet.

Designed for demanding industrial environments, the cable can be routed through conduits or cable carriers in accordance with standard machine-tool installation practices. The absence of a factory-installed machine-side connector makes it ideal for adapting to legacy equipment or machine-specific wiring configurations without modifying the original control system.

Ready to replace your defective HEIDENHAIN 296 800-01 HR Handwheel Connection Cable, this cable quickly restores reliable manual pendant operation when the original cable has been cut, damaged, or develops intermittent electrical faults. It is also an excellent solution for retrofit applications where additional cable length is required while preserving full handwheel functionality.

Each cable can be supplied as a fully inspected replacement, tested by experienced engineers on dedicated CNC test equipment to verify continuity and proper operation before shipment. Supplied with a warranty, the cable is carefully packaged to ensure safe international transportation. CNC-Shopping also offers repair services, exchange programs, and sourcing solutions for obsolete HEIDENHAIN components, helping maintenance teams minimize downtime and extend the service life of legacy CNC equipment.

Frequently asked questions about 296 800-01:

Is the connector included on the machine side?
No, it is supplied without a machine-side plug. This allows the maintenance team to terminate the cable to the exact connector and pinout specified by the machine builder.

Which HEIDENHAIN handwheels does it work with?
It is intended for selected HEIDENHAIN HR series portable handwheels commonly used with TNC controls. Always confirm the handwheel model and cabinet interface before ordering.

Can the 10 m length be modified?
Order the required length when possible. If modification is considered, have a qualified technician handle termination and verify wiring per the machine documentation.

Is this suitable for retrofit projects?
Yes, it is frequently sourced for retrofits where a longer path to the control cabinet is needed. The open end simplifies matching the builder’s connector standard during installation.
