HEIDENHAIN BF150 LCD Monitor iTNC 530 Mill Plus 15inch

Buy online your HEIDENHAIN BF150 LCD Monitor iTNC 530 Mill Plus 15inch reference BF150 from our US e-store Cnc-shopping USA, specialist in CNC machine-tools spare parts.The brand new BF150 Monifor models for sale are LCD Compatibles for HEIDENHAIN BF150 (BF-150), it will replace and fit instead of your old and faulty HEIDENHAIN BF150 (when black screen / low lighting screen, lines in the middle etc...).  You just need to unplug your old monitor and plug the New HEIDENHAIN BF150 LCD Monitor replacement.

Permanent Stock - SAME Day dispatch from our Florida Warehouse

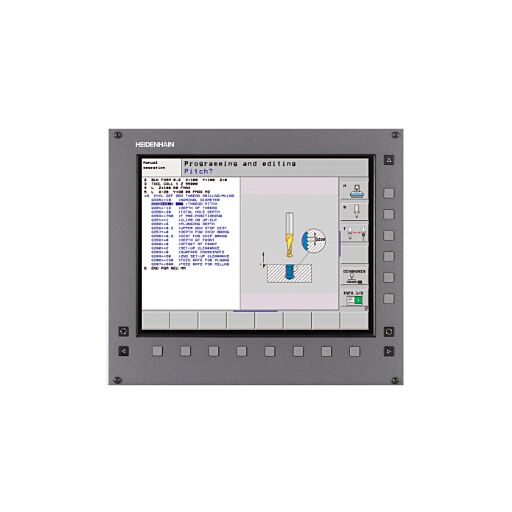

This is a HEIDENHAIN 15.1-inch TFT front panel display for iTNC 530 and MillPlus controls, supplied as a drop-in replacement for legacy BF150 / BF-150 operator panels. It replaces aging CRT or failed LCD units and restores clear XGA graphics and reliable soft-key operation on machine-tools running HEIDENHAIN TNC controls. Commonly used in retrofit and field replacement work, this unit is targeted for maintenance teams needing a fast, plug-compatible CNC HMI spare.

In the control chain, the BF150 serves as the operator interface, displaying the HMI screens and handling soft-keys tied to the PLC and control modes. Video is provided through the dedicated connector and displayed at 1024 x 768. Power is supplied at 24 VDC, and the soft-key interface communicates via the designated control connector, enabling mode switchover and screen layout functions expected on TNC panels.

Compatibility is aligned with original HEIDENHAIN Id.Nr. 353 522-03 and 353 522-04. The assembly includes the front-panel TFT module with 8 horizontal and 6 vertical soft keys for PLC integration, plus an extra keyboard flat cable and a 24 VDC green connector for straightforward field replacement. Technicians can unplug the defective display and install this replacement unit using the existing cutout and wiring. A concise adjustment guide supports setup on iTNC 530, MillPlus, and other TNC systems originally supplied with a BF150.

Reference: BF150

Manufacturer: HEIDENHAIN

Product type: HEIDENHAIN iTNC530 LCD Display Monitor

Main function: Front-panel TFT display with soft-key interface for HEIDENHAIN TNC operator control and HMI visualization.

Applications: Field replacement and retrofit on machines equipped with HEIDENHAIN iTNC 530, MillPlus, and other TNC controls using the BF150 15-inch panel.

Key technical data: 24 VDC supply, approx. 45 W on X1 power connector. 15.1-inch TFT LCD at 1024 x 768 via X2 video connector. 8 horizontal and 6 vertical PLC soft-keys on X3 interface with soft-key row switchover and operating-mode switchover functions. Includes a 24 VDC green connector and a spare keyboard flat cable. Replaces HEIDENHAIN Id.Nr. 353522-03 and 353522-04. Supplied with a Tech manual for TNC adjustment and panel integration.

In day-to-day maintenance, this unit is used to recover visibility and panel control on machines where the original display is unreadable or dead. It is a practical field replacement that helps cut machine downtime during breakdowns and planned overhauls. Many facilities keep a stocked spare on the shelf for emergency swap-outs, especially on legacy machining centers still running iTNC 530 or MillPlus.

This replacement is frequently used during rebuilds, control diagnostics, or PLC troubleshooting where a stable HMI is essential. For preventive strategies, one unit in industrial spare inventory can significantly reduce repair turnaround when a display fails without warning.

Packaging is engineered to protect the BF150 screen and front panel during transit. Many stocked items ship directly from our Florida facility. Warranty and repair support are available from our team to ensure a reliable service life in industrial environments.

For older or obsolete HEIDENHAIN panels, this assembly can serve as an emergency spare part to get a machine back online quickly. Cnc-shopping USA supports sourcing, repair service, and potential exchange service to keep legacy iTNC installations operational and extend machine lifetime.

Frequently asked questions about BF150:

Does this unit replace BF-150 versions with Heidenhain Id.Nr. 353 522-03 and 353 522-04?
Yes, it is a plug-compatible replacement for those references and is intended to fit in place of the original BF150 assembly used on iTNC systems.

What video resolution does the panel support on iTNC 530 and MillPlus?
The display runs at 1024 x 768 XGA through the video connector, matching the HMI requirements for iTNC 530, MillPlus, and BF150-based iTNC installations.

What are the power requirements and connectors?
The panel operates on 24 VDC at approximately 45 W via the X1 connector. Separate connectors handle video and the PLC soft-key interface.

What is included with the replacement unit?
You receive the TFT front panel with integrated soft keys, an extra keyboard flat cable, a 24 VDC green power connector, and a short manual for display adjustment on compatible HEIDENHAIN iTNC controls.

Where this BF150 has been manufactured?

This HEIDENHAIN BF150 Display monitor is made in Germany (COO: DE), new models come with a 12month warranty
