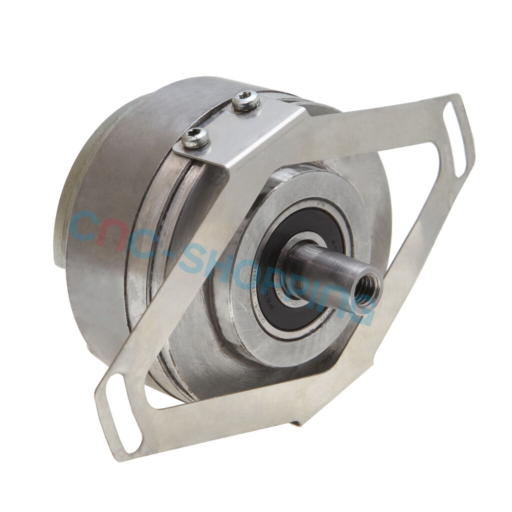

HEIDENHAIN EQN1325.035-2048 Encoder

Buy online your HEIDENHAIN EQN1325.035-2048 Encoder from our US e-store Cnc-shopping USA, specialist in CNC machine-tools spare parts.

The HEIDENHAIN EQN1325.035-2048 is a rotary encoder from the EQN series, designed to provide precise absolute position feedback for CNC axes and servo motors. It delivers multi-turn absolute position data and ensures reliable feedback signals for servo control, making it an ideal replacement unit and spare part for industrial maintenance and retrofit projects.

This multi-turn absolute encoder features a 2048-count base measuring track, allowing the drive to achieve high-resolution interpolation. Because the encoder provides absolute position information, the axis position is known immediately after power-up, eliminating the need for time-consuming homing procedures following power interruptions.

The EQN 1325 is commonly mounted on AC servo motors and rotary axes used in machining centers, lathes, grinding machines, rotary tables, and automated equipment. It supplies the position, speed, and commutation feedback required by modern CNC drives to achieve smooth motion, precise contouring, and repeatable positioning accuracy.

The EQN series typically uses HEIDENHAIN serial absolute communication protocols, and some variants also include a 1 Vpp sinusoidal output for high-resolution interpolation by the drive. Before replacing the encoder, it is essential to verify the exact part number, communication interface, and mechanical configuration to ensure full compatibility with the original installation.

Manufactured in Germany to HEIDENHAIN's high-quality standards, the EQN1325.035-2048 is widely used as a replacement for encoders that cause axis following errors, unstable positioning, or drive alarms. When installed as a like-for-like replacement, it helps restore machine performance while minimizing downtime.

Many maintenance departments keep this encoder in stock to ensure the availability of critical equipment and to perform replacements during scheduled maintenance periods.

Each unit can be tested on dedicated encoder test benches and CNC simulators to verify absolute data, sinusoidal signals, and commutation alignment where applicable. The encoder is supplied in anti-static packaging with protective cushioning suitable for industrial transportation.

The HEIDENHAIN EQN1325.035-2048 is a dependable solution for maintaining both modern and legacy CNC installations and for extending the service life of motion systems equipped with HEIDENHAIN feedback technology.

Frequently asked questions about EQN1325.035-2048:

Is this encoder absolute or incremental?
It is a multi-turn absolute encoder. Many variants also include a 1 Vpp sinusoidal incremental track for interpolation by the drive.

Which interface does it use?
EQN models are typically supplied with HEIDENHAIN serial absolute protocols such as EnDat. The exact protocol and pinout depend on the specific variant code, so confirm against the installed unit or the motor documentation.

Can I use it as a direct replacement on my motor?
Yes when the full code, interface and mechanical coupling match. Check flange style, coupling method and connector orientation to ensure a proper drop-in replacement.

Where is it typically installed?
It is commonly mounted on AC servo motors or rotary axes on machining centers, lathes and grinders to provide precise axis position and speed feedback.

What is the usual lead time?
Dispatch is typically within about three days depending on inventory. Contact us for current availability, tested unit options and possible refurbished or repair paths.
