HEIDENHAIN ERN 1387.020 2048 pulses Encoder

Buy online your HEIDENHAIN ERN 1387.020 2048 pulses Encoder reference ERN1387.020-2048 from our US e-store Cnc-shopping USA, specialist in CNC machine-tools spare parts.

This HEIDENHAIN incremental model from the ERN series provides precise rotary position feedback for CNC motors and axis systems. With 2048 pulses per revolution, it delivers reliable incremental feedback for closed-loop control, positioning, and homing on machine-tools. It is a practical replacement unit for maintenance teams managing motor feedback encoders on production equipment.

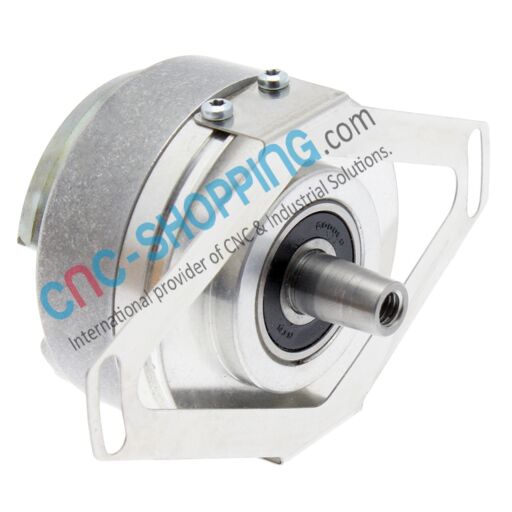

Designed for motor mounting, the ERN 1387.020 variant uses a conical shaft interface with a bracket to secure the assembly on the motor endbell. The 2048 ppr track supplies consistent incremental feedback that machine controllers use for speed and position, supporting accurate axis interpolation and stable spindle regulation when paired with the correct drive and PLC configuration.

In typical field use, this encoder is fitted on servo or spindle motors where stable feedback is required after thermal expansion and vibration cycles. Its format suits retrofit work and direct drop-in replacement of worn or damaged units of the same specification, minimizing machine downtime when a feedback fault or index loss is diagnosed.

Technicians commonly identify this model under HEIDENHAIN Id.Nr. 385 487-03 or 385487-51, which correspond to the same configuration. Keep the 2048 ppr specification consistent with the original to maintain controller scaling and ensure the drive parameter set remains valid without further modification.

Reference: ERN1387020-2048

Brand: HEIDENHAIN

Series: ERN incremental encoders

Resolution: 2048 pulses per revolution for motor feedback and positioning

Mechanical interface: Conical shaft with mounting bracket for motor installation

Alternate IDs: HEIDENHAIN Id.Nr. 385 487-03 and 385487-51

Availability: Listed for shipment within 3 days

Typical use: CNC motor feedback on axes and spindles in machine-tool service and retrofit projects

For industrial maintenance, this unit serves as a direct spare when an existing ERN 1387.020 with 2048 ppr fails due to bearing wear, contamination, cable damage, or loss of signal. Keeping a stocked spare in the toolroom or MRO cage helps shorten repair turnaround and restore machine uptime after an encoder alarm or unstable following error is observed.

Each encoder is a tested unit verified on dedicated HEIDENHAIN PWM20 Toolbox or CNC encoder benches by skilled engineers to confirm ~1Vss signal (5V) integrity and proper indexing before shipment. Supplied with a functional warranty and packed for transport protection to withstand standard industrial handling. Many stocked items ship directly from our Florida facility.

When an installation relies on an obsolete part or a legacy CNC, this HEIDENHAIN ERN variant can serve as an emergency spare to keep older equipment running while long-term sourcing or repair service is arranged. Cnc-shopping USA can also support exchange service or refurbished options depending on market availability.

Frequently asked questions about ERN1387020-2048:

Is the 2048 ppr value mandatory when replacing an older ERN 1387.020?
Yes. Match the 2048 pulses per revolution to keep drive scaling and controller parameters consistent. Changing the pulse count usually requires reconfiguration and may affect accuracy.

How do I confirm mechanical compatibility on my motor?
Verify that your original unit uses the conical shaft interface with a bracket and that the encoder footprint and fixing method match. Compare the Id.Nr. codes 385 487-03 or 385487-51 to your existing label. This is usually fitted on SIEMENS 1FT AC Servo motor or any motor compatible.

Can this unit be used as a field replacement without drive retuning?
When the model and pulse count match, it is typically a drop-in replacement. Always follow your machine builder’s procedures and confirm encoder alignment and signal quality after installation.

What maintenance practices help reduce downtime with motor encoders?
Keep at least one spare part in inventory for critical machines, inspect cabling and connectors during planned stops, and schedule preventive checks when vibration or coolant exposure is high.
