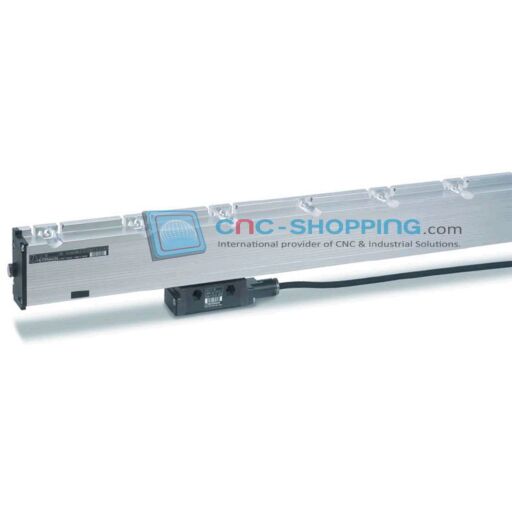

Heidenhain LC-181 ML 440mm Absolute Linear Encoder

HEIDENHAIN LC-181 ML 440mm Absolute linear scale for sale online on Cnc-shopping website. This is a HEIDENHAIN Linear encoder type Absolute Sealed linear encoder with a measuring length of 440mm protected with an aluminum housing and elastic sealing lips on the scale protecting from dust, chips and splash fluids and are ideal for operation on CNC Machine tools. This HEIDENHAIN LC181 ML 440mm Scale comes with a warranty.

HEIDENHAIN LC181 ML 440mm Absolute linear encoders provide the absolute position value immediately upon switch-on without previous movement of the machine axes. The absolute value is transmitted serially to the subsequent electronics over the EnDat interface.

Measuring standard - DIADUR glass scale with 7 tracks of differing grating periods
Data interface - EnDat (synchronous serial)
Incremental Output signals - 1 VPP, signal period 16 µm
