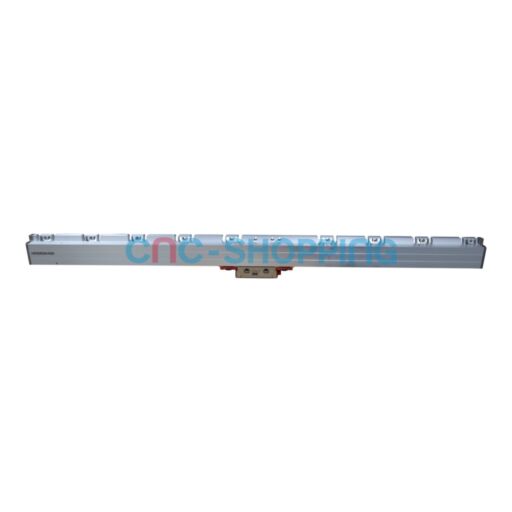

Heidenhain LC-185 ML 840mm Absolute Linear Encoder
Starting at $0.00 $0.00
HEIDENHAIN LC-185 ML 840mm Absolute linear scale for sale online on Cnc-shopping website. This is a HEIDENHAIN Linear encoder type Absolute Sealed linear encoder with a measuring length of 840mm protected with an aluminum housing and elastic sealing lips on the scale protecting from dust, chips and splash fluids and are ideal for operation on CNC Machine tools. This HEIDENHAIN LC185 ML 840mm Scale comes with a warranty.
HEIDENHAIN LC185 Absolute linear encoders provide the absolute position value immediately upon switch-on without previous movement of the machine axes. The absolute value is transmitted serially to the subsequent electronics over the EnDat 2.2 interface.
DIADUR glass scale with absolute track and incremental track
Absolute position values
EnDat 2.2 Interface and Incremental Signals: 1 Vss
High vibration resistance
Double sealing lips for greater protection
Signal Period: 20 µm
Accuracy Grade: ± 5 µm or ± 3 µm
Id.689696-07
| Availability | Shipment within 3 days |
|---|---|
| Weight | 7.00 kgs |
-
