HEIDENHAIN ROD 270 18000 pulses Encoder

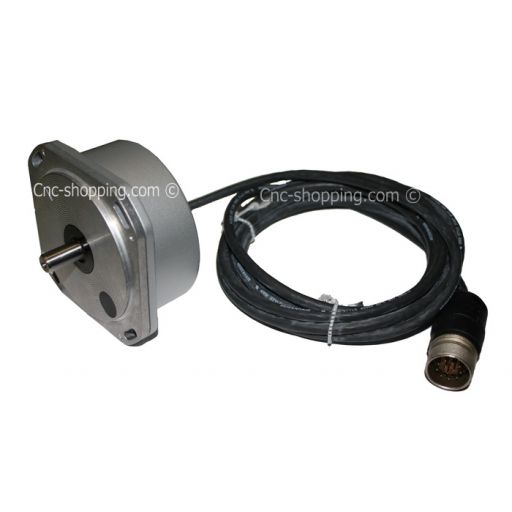

HEIDENHAIN pulse coder ROD 270 18000 01-03 for sale. Cnc-shopping propose to you a HEIDENHAIN encoder ROD 270 18000 pulses for replace your defective part. The Idnr of this encoder is 33188233. This pulse coder have 18000 line count, 64 measuring points and a maximum angular deviation +- 1.46 °. This encoder  HEIDENHAIN ROD 270 18000  comes with a warranty. The brand new model for sale is still in original HEIDENHAIN box.

With incremental angle encoders and rotary encoders,  the current position is determined by starting at a datum and counting measuring steps, or by subdividing and counting signal periods. Incremental encoders from HEIDENHAIN feature reference marks, which must be scanned after switch-on to reestablish the datum. Incremental rotary encoders with commutation signals supply the angular shaft position value - without requiring previous traverse - with sufficient accuracy to correctly control the phases of the rotating field of a permanent-magnet three-phase motor. HEIDENHAIN ROD 270 18000
