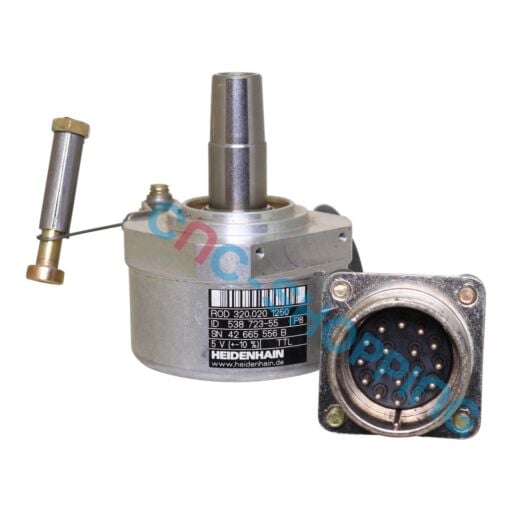

HEIDENHAIN ROD 320.020 1250 Incremental rotary encoder

Buy online your HEIDENHAIN ROD 320.020 1250 Incremental Rotary Encoder from our e-store Cnc-shopping.

This advanced incremental rotary encoder features an ID number 538723-55 and a line count of 1250, ensuring exceptional accuracy. It provides a TTL output signal with a maximum scanning frequency of 300.00 kHz. The power supply requirement is 5 V (+-10%). The coupling version is a mounting plate for wire clip with a coupling type of 43. The shaft is a tapered shaft 1:10 with a functional diameter of 13.25 mm and a shaft type of 89A. It has a protection rating of IP64 (EN60529), making it highly durable and resistant to environmental factors. The operating temperature range is from -40°C to +100°C. The electrical connection is a flange socket without conductive coating, male, 17-pin, Cannon model with a pin configuration of D312162. The connecting direction allows for both axial and radial cable use. The cable length is 0.22 m, and no additional parts are enclosed with the product.

This HEIDENHAIN ROD 320.020 1250 incremental rotary encoder is ready to replace your defective incremental rotary encoder. This product comes with a warranty and is available in our large inventory, making it the ideal choice for your maintenance and repair needs.
