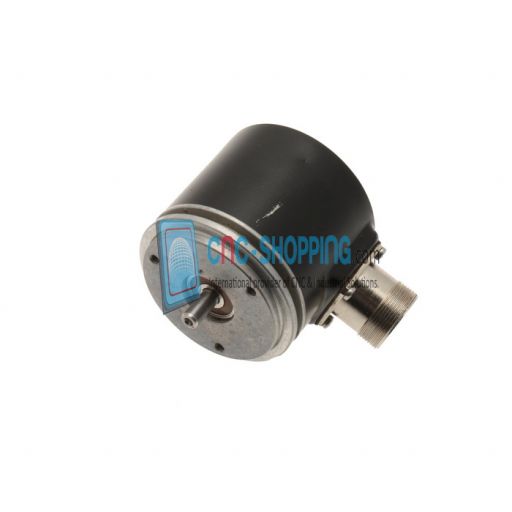

HEIDENHAIN ROD 426B.011 2500 Pulses encoder

Be the first to review this product

Starting at $277.50 $277.50

Product condition Availability Warranty
Price
Refurbished
Ships from: FRANCE Warehouse
stock unavailable Out of stock
3 months Warranty - Factory return The product is under warranty covering return to the workshop, for repair in our workshops or replacement, throughout the contractual warranty period.
$277.50 $277.50
Contact Us
  • Great quality products warranty
  • Specialised tech service
  • Secured payment and online invoice
HEIDENHAIN encoder flanged pin male reference ROD 426B.011 2500 for sale online on Cnc-shopping webstore. This HEIDENHAIN encoder has 2500 pulses. The HEIDENHAIN Idnr of this pulse coder is 253 580 08. This HEIDENHAIN ROD 426B.011 2500 encoder is ready to replace your defective HEIDENHAIN encoder and comes with a warranty.


A metal disc containing a set of concentric rings of openings is fixed to an insulating disc, which is rigidly fixed to the shaft. A row of sliding contacts is fixed to a stationary object so that each contact wipes against the metal disc at a different distance from the shaft. As the disc rotates with the shaft, some of the contacts touch metal, while others fall in the gaps where the metal has been cut out. The metal sheet is connected to a source of electric current, and each contact is connected to a separate electrical sensor. The metal pattern is designed so that each possible position of the axle creates a unique binary code in which some of the contacts are connected to the current source (i.e. switched on) and others are not (i.e. switched off). HEIDENHAIN ROD 426B.011 2500

More Information
AvailabilityOut of stock
Weight1.00 kgs
