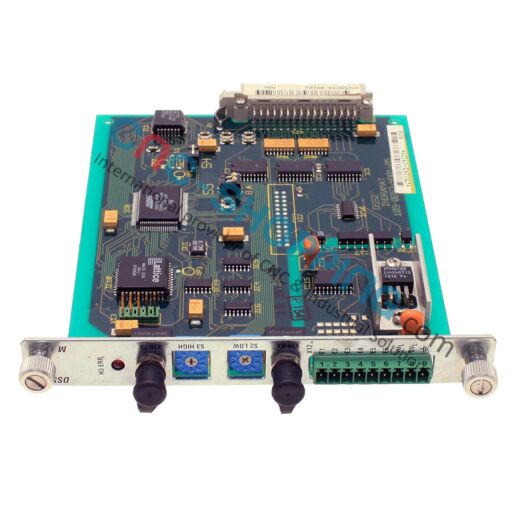

INDRAMAT DSS2.1 M DSS02.1 M Interface Board SERCOS
Starting at $499.50 $499.50
Buy online your INDRAMAT DSS2.1 M DSS02.1 M Interface Board SERCOS reference INDRAMAT DSS2.1 from our US e-store Cnc-shopping USA, specialist in CNC machine-tools spare parts.
This INDRAMAT SERCOS interface board is a dedicated communication and I/O module used within INDRAMAT axis drive assemblies on CNC machine tools. It manages the fiber optic SERCOS link between the CNC control and the drive, while providing local connections for machine limit and safety signals. Commonly sourced as a replacement unit for service work, it supports maintenance teams working on INDRAMAT servo systems that rely on a stable SERCOS fieldbus.
The module identified as DSS02.1M ties the digital command and feedback path to the drive through a fiber optic line, often labeled LWL in INDRAMAT documentation. In addition to the SERCOS channel, the board offers terminals for baseline switch evaluation, travel limit switches, sensor inputs and an E-STOP connector. This arrangement helps the drive process essential machine interlocks without burdening the CNC with discrete wiring.
It is typically installed in INDRAMAT multi-axis drive installations used on machining centers, turning machines and specialized CNC equipment. The board is recognized under several references that appear in service literature and on nameplates, including DSS02.1, DSS02.1 M, DSS2.1, DSS02 and 109-0852-4B01. Matching like for like with the original build is the usual field approach, which helps ensure seamless SERCOS communication with the existing CNC control.
The unit is German built and intended for straightforward field replacement during drive repairs or planned retrofits. When installed correctly within the drive’s designated slot and connected to the fiber optic loop, the board restores the SERCOS bus and the associated machine limit and safety circuits so the axis drive can rejoin production.
Reference: INDRAMAT DSS2.1
Manufacturer: INDRAMAT
Product type: INDRAMAT servo drive board for SERCOS interface
Main function: Fiber optic SERCOS communication and integrated I/O for limit, reference and E-STOP signals within INDRAMAT axis drives
Applications: CNC machine tools using INDRAMAT servo drives where the control communicates over SERCOS for axis command and feedback
Key technical data: Designation DSS02.1M, also referenced as DSS02.1, DSS2.1, DSS02, 109-0852-4B01. SERCOS fiber optic link (LWL) for digital command and readout. Terminals for baseline switch evaluation, travel range limit switches, sensors and E-STOP. Intended for installation in INDRAMAT axis drive assemblies. Country of manufacture Germany.
In day-to-day maintenance, this board is selected when a SERCOS communication fault or I/O handling fault is traced back to the interface stage of an INDRAMAT drive. Technicians typically carry a spare part in the crib for fast changeover during downtime events. Matching the original reference helps avoid controller reconfiguration, which shortens repair turnaround and brings the machine back on line quickly.
For planned service windows, many shops keep a tested unit on hand to support preventive maintenance or as a backup for machines running older INDRAMAT hardware. The board fits well into retrofit scenarios where the existing SERCOS loop must be preserved while other components are updated.
Each board supplied by Cnc-shopping USA is functionally verified on appropriate INDRAMAT test benches by skilled engineers, following the maker’s procedures. Units are packed in ESD-safe materials and prepared for industrial shipment. A functional warranty is provided. Many stocked items ship directly from our Florida facility, with dispatch depending on availability.
This component is often required as an emergency spare for legacy INDRAMAT SERCOS installations. Cnc-shopping USA supports sourcing of obsolete parts, and repair service or exchange service may be available for selected references. Keeping a compatible CNC replacement component on the shelf helps reduce unexpected downtime and extend the service life of older machines.
Frequently asked questions about INDRAMAT-DSS2-1:
Which references are equivalent to this board in service documentation?
This unit is commonly identified as DSS02.1M and also appears as DSS02.1, DSS2.1, DSS02 and 109-0852-4B01. Matching the on-machine nameplate is the best practice during replacement.
Where is the board installed in the drive system?
It mounts inside the INDRAMAT axis drive assembly in the designated slot for the SERCOS interface. The fiber optic LWL cables connect to its SERCOS ports, and the local I/O terminals handle limit, reference and E-STOP signals.
What should maintenance teams verify before ordering a replacement unit?
Confirm the exact printed reference on the original part, verify the SERCOS fiber optic connections and check the associated I/O wiring style on the drive. Sharing photos of the existing board’s labeling helps ensure model alignment.
Does this board help diagnose machine stops related to safety or limit circuits?
Yes. Since it handles reference switch evaluation, travel limit inputs and the E-STOP connector in the drive, replacing a failed interface board often clears faults tied to those signals once wiring and external devices are confirmed good.
| Availability | Immediate shipment |
|---|---|
| Weight | 1.00 kgs |
-
