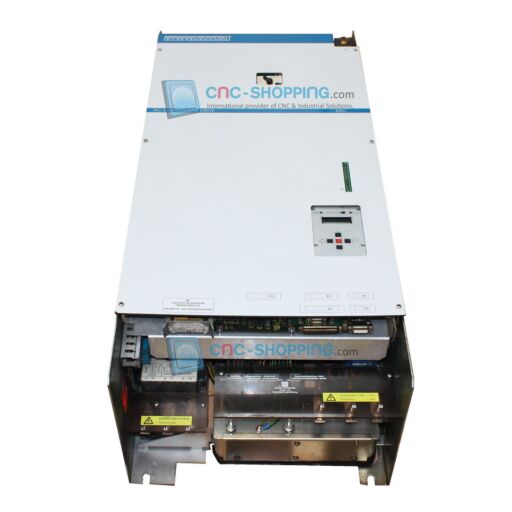

INDRAMAT RAC 2.1-200-380-A00-W1 AC spindle unit

Be the first to review this product

Starting at $7,770.00 $7,770.00

Manufacturer's Suggested Retail Price (02-2013): $18,000.00
Product condition Availability Warranty
Price
Refurbished
Ships from: FRANCE Warehouse
stock unavailable Immediate shipment
3 months Warranty - Factory return he product is under warranty for a factory return to our workshop, to be repaired or replaced, throughout its warranty period.
$7,770.00 $7,770.00
Contact Us
Your savings on Manufacturer's suggested retail price: $11,000.00
  • High-quality products with warranty
  • Expert technical service
  • Secure payment and PDF invoice
INDRAMAT AC spindle drive unit reference RAC 2.1-200-380-A00-W1 (RAC 2.1-200-380-AOO-W1) for sale online on Cnc-shopping webstore. This INDRAMAT spindle drive type RAC 2 is for INDRAMAT asynchronus motors model 2AD. The rated current is 200 A. The rated supply voltage for the power electronics is : 3 x AC 400V, +6% -15% (50-60Hz). The speed set-point is analogue (+/- 10 V). This INDRAMAT spindle drive RAC 2.1-200-380-A00-W1 doesn't include additional encoder input, additional interface and additional bleeder. This INDRAMAT spindle drive reference RAC 2.1-200-380-A00-W1 is equiped with built-in fan. This INDRAMAT AC spindle drive reference RAC 2.1-200-380-A00-W1 is ready to replace your defective INDRAMAT spindle drive mounted on your machine tools and comes with a warranty.


The torque exerted by the motor as a function of slip is given by a torque curve. Over a motor's normal load range, the torque line is close to a straight line, so the torque is proportional to slip. As the load increases above the rated load, increases in slip provide less additional torque, so the torque line begins to curve over. Finally at a slip of around 20% the motor reaches its maximum torque, called the "breakdown torque". If the load torque reaches this value, the motor will stall. At values of slip above this, the torque decreases. In 3-phase motors the torque drops but still remains high at a slip of 100% (stationary rotor), so these motors are self-starting. The starting torque of an induction motor is less than other types of motor, but still around 300% of rated torque. In 2-pole single-phase motors, the torque goes to zero at 100% slip (zero speed), so these require alterations to the stator such as shaded poles to provide starting torque. INDRAMAT RAC 2.1-200-380-A00-W1

More Information
AvailabilityImmediate shipment
Weight130.00 kgs
