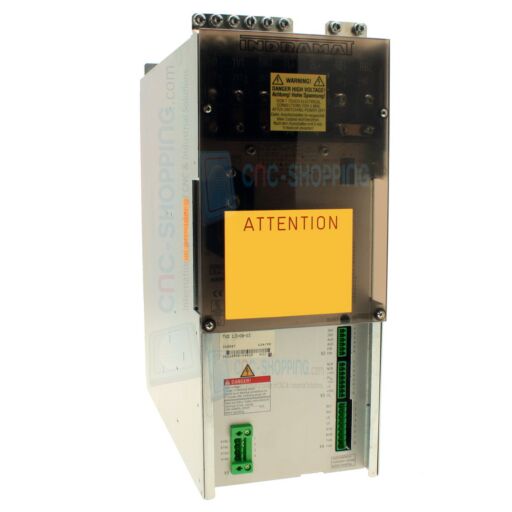

Buy online your INDRAMAT power supply module reference INDRAMATÂ TVD 1.3-08-03 (TVD1.3-08-03) in Stock for sale from our e-store. Cnc-shopping is offering you online this INDRAMAT power supply with reference TVD 1.3-08-03 for replace your defective part. INDRAMAT Power Supply Module for Direct Connection to 3xAC 380...480V Mains Supply.
This INDRAMAT module TVD 1.-08-03 wis fully tested on our test benches with Servo motors and comes with a warranty.
The TVD 1.3-08-03 is a product from the TVD Series by Rexroth, Indramat, Bosch. It is a power supply module designed to provide DC power for Indramat drives, which are compatible with Indramat controls and servo motors. The TVD1.3-08-03 is also equipped with comprehensive monitoring functions. This particular model offers a DC Bus Cont. Power of 7.5 kW and a DC Bus Voltage of 320V.
In the event of a power failure, the signal voltages are supplied from the DC bus circuit. Therefore, as the drives operate as a generator, the electronics of the drives remain functional. The TVD1.3-08-03 Power supply module is equipped with extensive monitoring functions. These communicate with the drive modules via the wire ribbon cable. INDRAMAT TVD1.3-08-03
The INDRAMAT TVD 1.3-08-03 power supply module plays a pivotal role in ensuring the efficient and reliable operation of high-voltage links. This advanced module rectifies the three-phase mains AC and delivers a regulated DC bus circuit voltage, which is crucial for powering the drives. The incorporation of a buffer capacitor ensures any necessary smoothing, enhancing the stability and performance of the system.
One of the standout features of the INDRAMAT TVD1.3-08-03 is its ability to manage regenerated power. When the INDRAMAT drives switch to generator mode, the regenerated power is efficiently absorbed by the bleeder resistor and transformed into heat, preventing any potential damage or inefficiency. Additionally, the drives can be safely disconnected from the mains using the TVD's internal power contactor, adding an extra layer of protection and control.
The TVD 1.3-08-03 is designed to provide essential voltages, such as +24VL and +/-15VM, to all connected drive modules, ensuring seamless operation across the board. In the event of a power failure, the module's robust design ensures that signal voltages are maintained from the DC bus circuit. This feature is particularly important as it allows the drives to operate as generators, keeping the electronics of the drives functional and preventing any operational downtime.
Furthermore, the INDRAMAT TVD 1.3-08-03 power supply module is equipped with extensive monitoring functions. These functions communicate effectively with the drive modules via a wire ribbon cable, offering real-time updates and ensuring optimal performance. The comprehensive monitoring capabilities of the TVD 1.3-08-03 make it a reliable and indispensable component in any high-voltage system.
Technical Description :
The INDRAMAT TVD 1.3-08-03 power supply module is designed for high-performance industrial applications. Key technical specifications include:
- Input Voltage: Three-phase mains AC
- Output Voltage: Regulated DC bus circuit voltage to the TDM Drives.
- Regenerated Power Management: Absorbed by bleeder resistor, transformed into heat
- Internal Power Contactor: Allows safe disconnection from mains
- Power Failure Management: Maintains signal voltages from DC bus circuit
- Monitoring Functions: Extensive, communicating via wire ribbon cable
- Compatibility: Designed for use with INDRAMAT drive modules
Alternative reference INDRAMAT TVD 1-3-08-03 TVD 1.3-O8-O3 TVD-1.3-08-03 TVD1.3-08-03 TVD130803 TVD 1 3 08 03 tvd 1.3-08-03
