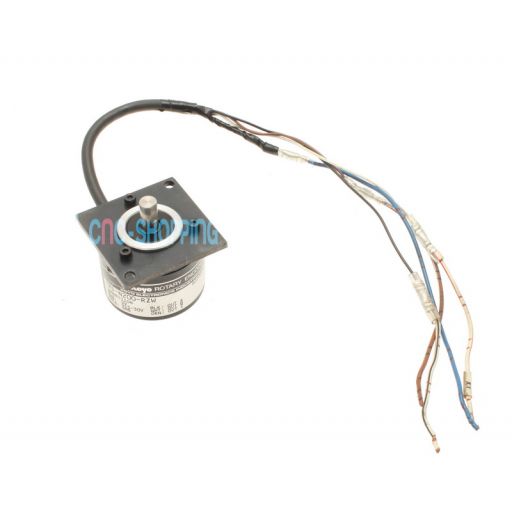

KOYO TRD-N200-RZW Rotary encoder 200P

Buy online your KOYO TRD-N200-RZW Rotary encoder reference KOYO-TRD-N200-RZW from our US e-store Cnc-shopping USA, specialist in CNC machine-tools spare parts.

Built by KOYO Electronics in Japan, this incremental rotary feedback unit from the TRD-N series is used for position and speed monitoring in CNC machine tools and general automation. It delivers two-phase A/B quadrature with a Z index, making it a dependable CNC replacement component for axis homing, directional counting and basic position tracking on lathes, machining centers, indexing tables and material handling equipment.

This model outputs 200 pulses per revolution (P/R), which supports stable referencing and repeatable returns to zero. The IP65 protection rating helps resist dust and coolant splash typically present around enclosures and conveyors, while the 8 mm solid shaft allows straightforward coupling to motors, screws and rollers using standard clamp or jaw style couplings.

The RZW variant provides the familiar A, B and Z signal scheme that integrates cleanly with PLC high‑speed inputs, counters and motion control modules designed for incremental quadrature with index. Maintenance teams value the TRD-N family for rugged shop-floor service and predictable behavior during field replacement, retrofit projects and corrective maintenance where a drop‑in replacement unit is preferred.

Electrical compatibility should be verified against the receiving module’s input requirements and wiring pinout. Once matched, this encoder is commonly used to restore lost counts on feed drives, stabilize roller speed feedback and re-establish reliable homing on older and modern controls alike.

Reference: TRD-N200-RZW

Manufacturer: KOYO

Product type: KOYO KOSTAC

Main function: Incremental two-channel position and speed feedback with index for homing cycles

Applications: CNC machine tools, conveyors, elevators, general automation, angle and position detection on motion axes

Key technical data: 200 PPR incremental quadrature on channels A and B with single Z index, 8 mm solid shaft for direct coupling, IP65 dust and splash protection, manufactured in Japan by KOYO Electronics. Tested unit supplied with warranty. Fast dispatch depending on availability.

In day-to-day maintenance this model is sourced to recover reliable axis referencing and speed feedback when the original encoder fails or drifts. The compact body and 8 mm shaft simplify field swap during downtime, allowing technicians to bring the machine back online with limited mechanical adjustment when dimensions and signal format match the original device.

Many plants keep this encoder as a spare part in industrial stock to reduce unplanned outages. It is also used during retrofit planning where existing brackets, couplings and wiring can be retained, supporting a tidy changeout with minimal rework.

Each tested unit is verified by skilled engineers on appropriate encoder test benches or simulators to confirm channel integrity and index behavior. Packaging is prepared for industrial shipping with proper protection, and a warranty is included. Depending on availability, products are commonly dispatched from our Florida warehouse.

This item can serve as an emergency spare for unexpected failures and is suitable for supporting older installations where the original may be an obsolete part. Cnc-shopping USA can assist with sourcing, and repair service or exchange service may be available after evaluation.

Frequently asked questions about KOYO-TRD-N200-RZW:

What feedback format does this unit provide?
It is an incremental encoder with channels A and B in quadrature and a Z index per turn for homing. This format is widely supported by motion controllers and PLC high‑speed inputs.

How is the 200 PPR resolution used by controllers?
Most controllers can decode both edges on A and B to obtain higher internal counts per revolution. Check the input configuration of your device to confirm how counts are accumulated.

What mechanical interface does it use?
It features an 8 mm solid shaft that connects via clamp, beam or jaw couplings sized for 8 mm. Proper alignment helps minimize runout and extend bearing life.

Is it suitable around coolant and dust on CNC machines?
With IP65 sealing it is dust tight and resistant to water spray, which covers coolant mist and splash around machine enclosures. It is not intended for high-pressure washdown.

How do I confirm electrical compatibility during replacement?
Match supply, output signal type and pinout with your PLC, drive or counter. Refer to the device label and official datasheet to verify channel phasing and index orientation before power up.
