LX660-4077-T296/L5R003 Fanuc Pulse coder servo i series 5m
Starting at $210.90 $210.90
Buy online your LX660-4077-T296/L5R003 Fanuc Pulse coder servo i series 5m reference LX660-4077-T296/L5R003 from our e-store Cnc-shopping, specialist in CNC machine-tools spare parts.
This FANUC Signal feedback lead is used between a pulse coder i series servo motor and the front port of a FANUC Alpha SVM i series amplifier. It carries the encoder signal for axis position and speed feedback, acting as a direct CNC replacement component for maintenance and retrofit work on machines running the i series servo platform.

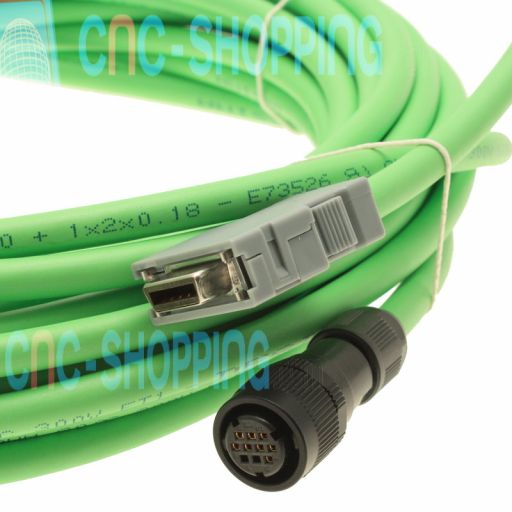

The assembly is a factory-terminated encoder link, 5 m long, that connects the motor-side pulse coder to the amplifier’s optical feedback receptacle. The black connector mates with the pulse coder on the motor, while the gray connector plugs into the amplifier’s HRS port for the corresponding axis on the A06B Alpha SVM i series module. The L5-style terminations provide keyed, reliable mating and stable signal integrity in industrial environments.
In the CNC control chain this lead transmits the serial optical encoder data from the motor to the drive, supporting accurate commutation and closed-loop control. It is commonly found on machining centers, turning machines and automated lines built on FANUC i series servos where an optical feedback path is specified instead of copper signaling. Using the correct optical link helps eliminate electrical noise issues seen near VFDs, welders or high-current devices on the production floor.
Integration is straightforward for any axis on a compatible Alpha SVM i series amplifier. The gray end goes to the drive’s dedicated front optical pulse coder port, and the black end connects to the motor’s pulse coder interface. The 5 m length suits most axis routing paths from the motor to the cabinet, including energy chain runs, while maintaining proper bend radius and strain relief practices used by maintenance teams.
The cable jacket is engineered for shop environments with oil exposure and coolant mist. It is oil-resistant per EN 60811-2-1 and consistent with VDMA 24568 organic oil resistance specifications using Plantocut 8 S-MB, and the molded connectors resist pull and vibration that often occur in moving cable carriers.
Reference: LX660-4077-T296/L5R003 (LX660-4077-T296#L5R003)
Manufacturer: FANUC
Product type: FANUC Signal encoder cable
Main function: Single encoder feedback link between the motor’s pulse coder i series and the Alpha SVM i series amplifier
Applications: Axis feedback path on FANUC i series servo systems used in machining centers, lathes and automation cells requiring optical pulse coder connections
Key technical data: 5 m length. L5 optical connectors, black to the motor pulse coder and gray to the drive front port. Straight connector style at the amplifier side. Oil-resistant jacket per EN 60811-2-1, resistant to organic oils in line with VDMA 24568 with Plantocut 8 S-MB. Factory-terminated assembly made in Japan, suitable for dynamic routing in cable carriers.
In service this unit is a practical spare part to resolve encoder alarms caused by crushed leads, bent ferrules or coolant ingress at the connector. Maintenance teams use it as a drop-in replacement during planned stops or emergency repairs to restore axis feedback and reduce machine downtime. Keeping at least one stocked spare in the cabinet is common practice for critical axes and unmanned shifts.
Each item is inspected and function-checked on appropriate FANUC CNC test benches or simulators by skilled engineers, then packed with ESD-safe and coil-protective materials. Covered by our standard warranty. Many stocked items ship directly from our Florida facility, subject to availability.
For legacy and obsolete part support, Cnc-shopping can assist with sourcing, repair service or an exchange service when applicable. This helps keep older FANUC installations operational and reduces unexpected downtime by securing emergency spares for high-priority machines.
Frequently asked questions about LX660-4077-T296/L5R003:
Where does each end connect on the machine?
The black L5 connector mates with the motor’s pulse coder i series interface. The gray L5 connector plugs into the dedicated front optical pulse coder port on the corresponding axis of the FANUC Alpha SVM i series amplifier.
Is this suitable for A06B Alpha SVM i series amplifiers?
Yes, it is intended for use with FANUC A06B-series Alpha SVM i modules that use L5 optical feedback from i series pulse coders (such as A860-2xxx encoders) . Confirm the front optical receptacle type and required axis channel before ordering.
What length is supplied and are other lengths available?
This assembly is 5 m. Other L5R variants may exist for different routing distances. Contact our team for sourcing support on alternative lengths or a refurbished unit if needed.
Any routing considerations during installation?
Follow standard practices used for optical leads. Maintain the recommended bend radius, avoid kinks and secure the cable in the carrier to prevent crushing near moving sections.
