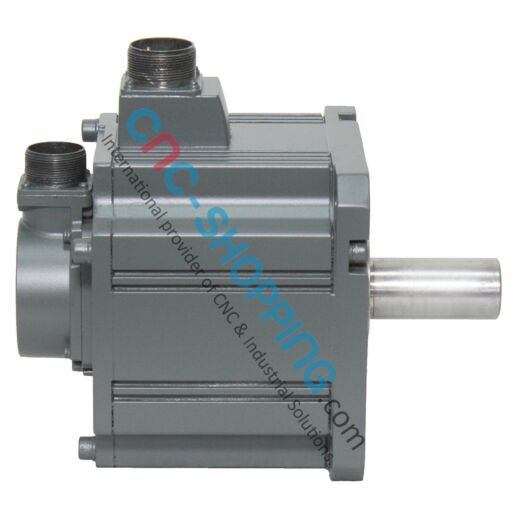

MITSUBISHI HC353S AC Servo motor Encoder 3.5kW
Starting at $1,387.50 $1,387.50
Buy online your MITSUBISHI HC353S AC Servo motor Encoder 3.5kW reference HC353S from our US e-store Cnc-shopping USA, specialist in CNC machine-tools spare parts.
This is a MITSUBISHI AC axis motor used on CNC feed axes where reliable positioning and stable torque are required. The unit is a 3.5 kW class servo with 3000 rpm rated speed, designed for machines that use front connectors for both power and encoder feedback. Commonly sourced as a replacement motor for defective or worn units, it fits maintenance, retrofit and field replacement needs on production floors handling daily duty cycles.
The motor features a straight cylindrical 35 mm shaft and a 114 mm pilot for flange centering, which simplifies drop-in installation when the original footprint is maintained. It is supplied without brake, suitable for axes where holding torque is managed by the drive or by machine mechanics. Two front-mounted sockets separate power and feedback, allowing quick hook-up with existing harnesses when the same connector coding is used.
Electrically, this unit operates at 3AC 151 V with a current rating of 16 A and a mechanical output of 3.5 kW. In practice, matching the motor to the correct Mitsubishi servo amplifier rating and encoder interface is essential. The physical details, including shaft size, pilot diameter and connector orientation, make it a practical field replacement when swapping an installed HC353S in mills, lathes, and general-purpose CNC machines where this frame size is specified by the OEM.
Units supplied by Cnc-shopping USA are refurbished, tested and supported by a functional warranty for dependable operation once installed. Typical references associated with this model include HC353S, HC353-S and HC353 S, all corresponding to the same power class and mechanical format manufactured in Japan.
Nameplate highlights for quick identification include 3AC 151 V input, 16 A current class, 3.5 kW output, 3000 rpm speed rating, front encoder and power connectors, straight shaft 35 mm, pilot 114 mm, and no holding brake. These parameters are commonly checked during maintenance planning to confirm fit and drive pairing before release back to production.
On the shop floor this model is used to restore feed axis motion after bearing wear, encoder faults or winding failures on the original unit. Keeping a stocked spare or arranging a replacement unit for the HC353S helps reduce machine downtime and supports preventive maintenance schedules for aging CNC assets. When planning a swap, verify flange pilot, shaft diameter and feedback connector compatibility against the original nameplate and wiring.
Each refurbished motor is inspected and dynamically checked by skilled engineers on dedicated servo benches and CNC simulators. Shaft runout, insulation resistance and feedback signals are verified before shipment, and units are packed for industrial transport with connector protection. A functional warranty is included. Many stocked items ship directly from our Florida facility, and standard dispatch for this reference is commonly within 3 days depending on availability.
For plants supporting legacy or obsolete automation, this unit can serve as an emergency spare to keep older CNC equipment running. Cnc-shopping USA can assist with repair service, exchange service or sourcing of hard-to-find motors so maintenance teams can stabilize uptime while planning long-term retrofits. Worldwide shipping is available through our US e-store.
Frequently asked questions about HC353S:
How can I confirm mechanical compatibility before ordering?
Check the shaft diameter of 35 mm, the flange pilot of 114 mm and the connector orientation at the front. Compare these with your installed unit and mounting pattern to ensure a direct swap.
Does this version include a holding brake?
No, this configuration is supplied without brake. If your axis requires holding torque when powered off, keep the machine’s external brake arrangement or request a motor variant with an integrated brake from the same family.
What about encoder connections and drive pairing?
The Servo motor uses a dedicated front encoder connector. Match the feedback interface and cable set to the intended Mitsubishi servo amplifier generation and rating to ensure proper commissioning.
Is this suitable as a drop-in replacement for a failed unit on a production line?
Yes, when the electrical rating, connector style and mechanical dimensions match the original HC353S, it is a practical drop-in replacement that helps shorten repair turnaround and resume machine uptime.
| Availability | Shipment within 3 days |
|---|---|
| Weight | 25.00 kgs |
-
