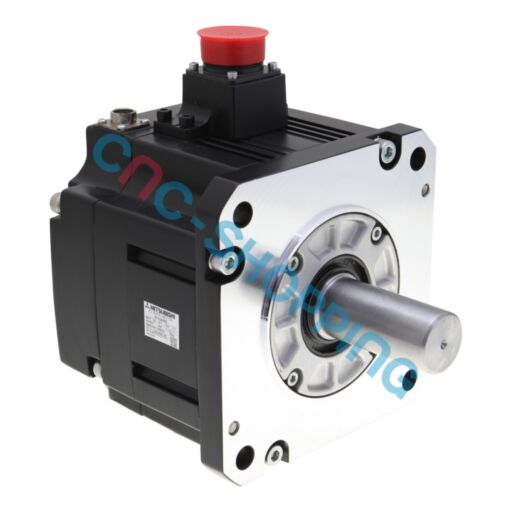

MITSUBISHI HF-H204BS-A48 AC Servo motor Straight shaft Brake 381V 2kW

Starting at $1,998.00 $1,998.00

Product condition Availability Warranty
Price
New
Ships from: USA Warehouse
stock available Shipment within 3 days
12 months Warranty - Factory return he product is under warranty for a factory return to our workshop, to be repaired or replaced, throughout its warranty period.
$1,998.00 $1,998.00
Estimate Totals

Enter your destination to get a totals estimate.

  • Top-quality products backed by a warranty
  • Advanced technical support
  • Secure payment process with PDF invoice

Buy online your MITSUBISHI HF-H204BS-A48 AC Servo motor Straight shaft Brake 381V 2kW reference HF-H204BS-A48 from our US e-store Cnc-shopping USA, specialist in CNC machine-tools spare parts.

This MITSUBISHI HF-H series unit is a 2 kW AC servo motor designed for CNC axis motion on machine-tools and industrial automation equipment. It features a straight shaft, an integrated holding brake for secure positioning when power is removed, and the A48 encoder option for precise feedback to compatible MITSUBISHI servo amplifiers. It is a reliable replacement motor for maintenance teams dealing with machine downtime or retrofit work on legacy Mitsubishi motion systems.

In a CNC architecture, this motor drives feed axes with accurate speed and position control through its encoder feedback to the drive. The 2 kW rating at a nominal speed around 3000 rpm suits mid-size axes commonly found on machining centers, turning machines and automated transfer equipment. The integrated brake is particularly useful on vertical axes where load holding is required during stop or emergency conditions.

The motor operates on three-phase 381 V supply with an approximate rated current of 3.8 A, as specified for the HF-H204BS variant. The front-mounted power connector simplifies cabling runs inside tight electrical enclosures and eases field replacement when the original unit fails. Feedback is managed by the A48 encoder option, which must match the drive’s supported feedback interface on Mitsubishi motion platforms that accept HF-H series motors.

Manufactured in Japan, this model is commonly paired with MITSUBISHI servo drives that are specified for HF-H motors and A48 feedback. For best results on a drop-in replacement, confirm the complete motor code, connector orientation and brake option against the original nameplate.

Reference: HF-H204BS

Manufacturer: MITSUBISHI

Product type: MITSUBISHI AC Servo Motor

Main function: CNC axis servo for precision positioning and feed motion with holding brake capability

Applications: Machining center axes, turning machine feeds, vertical Z axes requiring brake hold, general industrial automation retrofits

Key technical data: 2 kW rating at approximately 3000 rpm with operating range up to 4000 rpm, three-phase 381 V supply, about 3.8 A rated current, straight shaft configuration, integrated brake version, A48 encoder, front power connector, part of the MITSUBISHI HF-H series. Controlled by Mitsubishi servo amplifiers that support HF-H motors and A48 feedback.

For field replacement, technicians typically reuse the original mounting hardware and cable set where condition allows, then carry out standard drive parameter checks for motor model and encoder settings. Keeping one stocked spare per critical machine or shared axis family helps shorten repair turnaround and protect machine uptime during unplanned stops.

This unit is supplied as a tested component suitable for direct replacement of a defective motor. It fits well into preventive maintenance strategies for aging CNC installations where HF-H motors remain in service. The brake option is valuable on safety-critical axes and helps restore normal operation after a motor failure without mechanical redesign.

Each motor is functionally evaluated by skilled engineers on dedicated CNC simulators with servo motors. Tests typically include encoder feedback verification, brake actuation checks and insulation assessments to confirm readiness as a replacement unit. Many stocked items ship directly from our Florida facility, with fast dispatch depending on availability. Typical handling shows shipment within 3 days. Units are professionally packaged for industrial shipping and supplied with a performance warranty.

For time-sensitive breakdowns, this model can serve as an emergency spare to reduce downtime on machines that still rely on HF-H motors. Cnc-shopping USA supports sourcing of obsolete parts when possible and can assist with repair service or exchange service options for specific cases. This helps maintain legacy CNC equipment in production with dependable CNC replacement components.

Frequently asked questions about HF-H204BS:

What encoder type is fitted on this motor?
This version carries the A48 encoder, which must be supported by the Mitsubishi servo amplifier in your installation. Confirm the encoder option on the drive documentation before ordering a replacement unit.

Is the brake included and suitable for vertical axes?
Yes, the HF-H204BS variant includes an integrated holding brake. It is commonly used on Z axes or any axis that needs load holding when power is removed.

How should I verify compatibility with my drive?
Match the full motor code, voltage class and encoder option with your existing motor nameplate and the drive’s supported motor list for the HF-H series. If in doubt, share your motor label and drive model with our team for a compatibility check.

What connector orientation does this model use?
This unit features a front-mounted power connector which helps in compact cabinets and eases cable access during field replacement. Reuse original cables when condition and connector types match.
