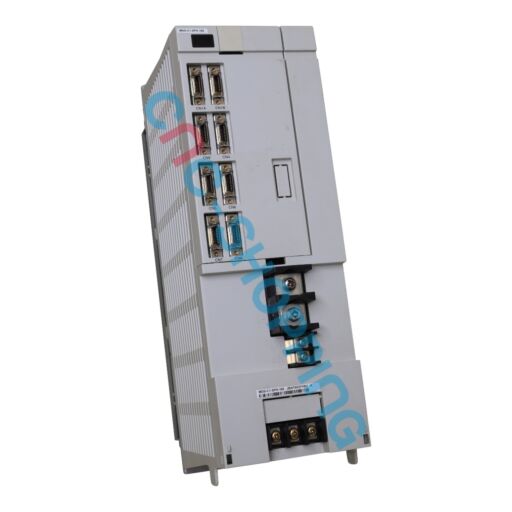

MITSUBISHI MDS-C1-SPH-185 CNC Spindle drive unit 18.5kW

Buy online your MITSUBISHI MDS-C1-SPH-185 CNC Spindle drive unit 18.5kW reference MDS-C1-SPH-185 from our US e-store Cnc-shopping USA, specialist in CNC machine-tools spare parts.

This MITSUBISHI Electric spindle drive from the MDS-C1 family is built to command AC spindle motors up to 18.5 kW. It handles spindle speed, torque regulation and orientation under CNC control, making it a reliable replacement unit for machine-tool service, retrofit work and field repairs where an exact-match CNC replacement component is required.

Within a typical MDS-C1 cabinet the unit is installed next to the matching power supply, tied into the system bus to receive spindle commands from the CNC. The module provides a rated output current of 63 A, appropriate for mid-range spindle motors used on machining centers and CNC lathes that need consistent torque delivery across a wide operating range.

Thermal behavior in the cabinet is an important practical point. The unit dissipates about 190 W at continuous rated output, so allow vertical clearance above and below and ensure cabinet airflow meets the installation guidelines. This helps avoid nuisance faults related to overtemperature during long cutting cycles on the production floor.

Drive sizing follows established MITSUBISHI practice. The power supply capacity is selected by motor output, and the spindle module capacity is matched to motor characteristics. When replacing a failed drive, keep the same reference and verify motor nameplate data to maintain proper coordination with the installed power supply and CNC interface.

Reference: MDS-C1-SPH-185

Manufacturer: MITSUBISHI Electric

Product type: MITSUBISHI Servo drive MDS-C1 (SPH Version)

Main function: Controls a MITSUBISHI AC spindle motor in CNC machines, managing speed, torque and spindle orientation under CNC command.

Applications: CNC lathes and machining centers using the MDS-C1 platform; field replacement and retrofit projects requiring a drop-in spindle drive with 18.5 kW capacity.

Key technical data: Output capacity up to 18.5 kW with 63 A rated output current. Designed for installation adjacent to the MDS-C1 power supply as per connection manuals. Heat generation around 190 W at continuous rated output, with recommended top and bottom clearance for airflow. Built in Japan. Drive capacity matched to motor characteristics, power supply sized to motor output.

In maintenance practice this model is commonly kept as a stocked spare to reduce machine downtime when spindle alarms or speed control faults appear. For a failed unit with the same code, this is a straightforward drop-in replacement that helps restore spindle performance quickly once parameters and wiring are verified. Shops running legacy equipment often keep one on the shelf to secure machine uptime during peak production.

Units are inspected and tested by skilled engineers on CNC simulators with spindle motors before shipping. Packaging is prepared for industrial transport with ESD-safe handling. Many stocked items ship directly from our Florida facility. Standard warranty applies to qualifying purchases.

For emergency spares and older installations, Cnc-shopping USA supports repair service, exchange service and sourcing of obsolete parts in the MDS-C1 range when available. A qualified refurbished unit can keep legacy lines running while a repair turnaround is organized.

Frequently asked questions about MDS-C1-SPH-185:

What spindle motor ratings does this module support?
It is specified up to 18.5 kW with a rated output of 63 A. Always confirm motor nameplate data and match the drive capacity to the exact motor characteristics used on your machine.

Is this a direct replacement for an existing MDS-C1-SPH-185?
Yes, it is intended as a direct swap for the same reference in MDS-C1 cabinets. Verify parameter sets, I/O and communication settings per your machine documentation before power-up.

Which power supply should be used with this drive?
Use the corresponding MDS-C1-CV power supply sized by the motor output. The spindle module is installed adjacent to that supply as shown in MITSUBISHI connection manuals.

Are there specific cooling or spacing requirements?
Allow vertical clearance above and below the unit and maintain cabinet airflow. The drive dissipates about 190 W at continuous rated output, so proper ventilation prevents thermal trips during long runs.
