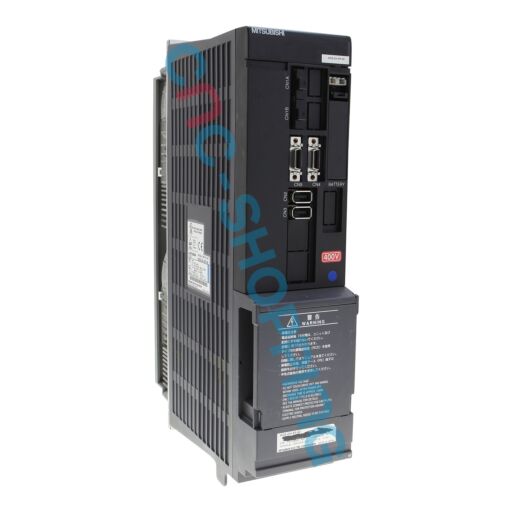

MITSUBISHI MDS-DH-SP-80 CNC Spindle drive unit 400V 80A
Starting at $2,331.00 $2,331.00
Buy online your MITSUBISHI MDS-DH-SP-80 CNC Spindle drive unit 400V 80A reference MDS-DH-SP-80 from our US e-store Cnc-shopping USA, specialist in CNC machine-tools spare parts.
This MITSUBISHI spindle inverter belongs to the MDS-DH platform and controls 400 V class MITSUBISHI AC spindle motors. It regulates spindle speed and torque from the CNC command, serving as a reliable replacement unit or stocked spare part for machine tools that require stable spindle control and consistent runtime.
Designed for shared DC bus systems, this unit draws from a high voltage link and delivers three phase output to the matched spindle motor. The rated output is engineered for motors up to 7.5 kW, which suits many turning and machining center applications where steady spindle performance is required across a broad speed range.
Integration follows the MDS-DH architecture. The unit is typically installed adjacent to the corresponding power supply module as indicated in MITSUBISHI connection manuals. Proper spacing above and below the module is important to manage heat during continuous duty and to protect nearby components on the mounting panel.
Key electrical parameters include a rated DC input window of 513 to 648 V DC at approximately 21 A, and a spindle output around 340 V AC three phase with 19 A continuous capability. Sizing should follow the motor’s nameplate characteristics. Power supply capacity is selected to the motor load, while the spindle inverter sizing is matched to motor requirements and duty.
Reference: MDS-DH-SP-80
Manufacturer: MITSUBISHI
Product type: MITSUBISHI Servo drive MDS-D
Main function: Spindle inverter for controlling 400 V class MITSUBISHI AC spindle motors within MDS-DH systems
Applications: Spindle control on CNC lathes and machining centers using MITSUBISHI MDS-DH power and drive platforms
Key technical data: Rated DC input 513 to 648 V at 21 A, three phase output around 340 V AC rated 19 A for up to 7.5 kW motors, 400 V class configuration, Japan build quality, code variant MDSDHSP80 B45201. Installed next to the matched power supply module with adequate top and bottom clearance for thermal management. Drive and supply capacity selection should follow the motor rating and duty cycle.
On the production floor this module is commonly sourced as a spare part to replace a faulty spindle inverter and to restore machine uptime without reworking cabinet wiring. Maintenance teams often keep a stocked replacement unit for this rating to minimize repair turnaround and to support planned preventive swaps during scheduled service windows.
For field replacements, the goal is a clean mechanical and electrical drop-in. Match the motor rating and connector layout, confirm the DC bus supply is within specification, and keep panel spacing consistent with the original build to maintain cooling performance and service life.
Units are inspected and functionally verified on CNC simulators with servo motors by skilled engineers, then packed for industrial transport. Many stocked items ship directly from our Florida facility, and typical dispatch is within 3 days depending on availability. A limited warranty applies to eligible units, and professional packing protects sensitive power electronics during transit.
This model is frequently used as an emergency spare when a spindle channel fails unexpectedly. Cnc-shopping USA supports repair service, exchange service when available, and sourcing for obsolete parts to keep legacy machines running with dependable CNC replacement components.
