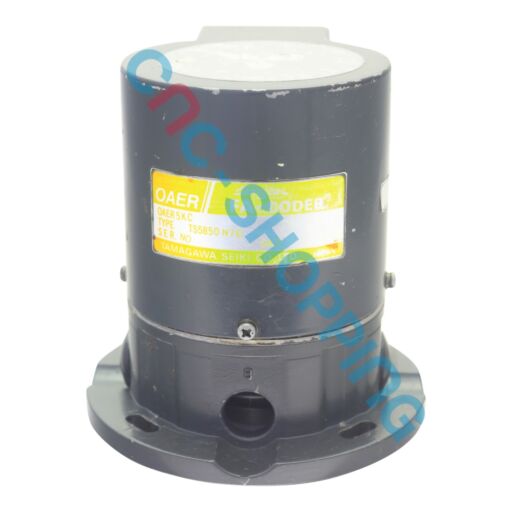

MITSUBISHI TAMAGAWA OAER 5KC TS5850 N70 Encoder

MITSUBISHI TAMAGAWA encoder reference OAER 5KC TS 5850 N70 for sale online on Cnc-shopping webstore. The TAMAGAWA reference of this pulse coder is TS 5850 N70. The plug of this MITSUBISHI TAMAGAWA encoder has 17 pins. This encoder is mounted on MITUSBISHI AC servo motor type HA...This MITSUBISHI TAMAGAWA OAER 5KC TS 5850 N70 pulse coder is ready to replace your defective pulse coder and comes with a warranty.

The most common type of resolver is the brushless transmitter resolver (other types are described at the end). On the outside, this type of resolver may look like a small electrical motor having a stator and rotor. On the inside, the configuration of the wire windings makes it different. The stator portion of the resolver houses three windings: an exciter winding and two two-phase windings (usually labeled "x" and "y") (case of a brushless resolver). The exciter winding is located on the top, it is in fact a coil of a turning (rotary) transformer. This transformer empowers the rotor, thus there is no need for brushes, or no limit to the rotation of the rotor. The two other windings are on the bottom, wound on a lamination. They are configured at 90 degrees from each other. The rotor houses a coil, which is the secondary winding of the turning transformer, and a separate primary winding in a lamination, exciting the two two-phase windings on the stator. MITSUBISHI TAMAGAWA OAER 5KC TS 5850 N70.
