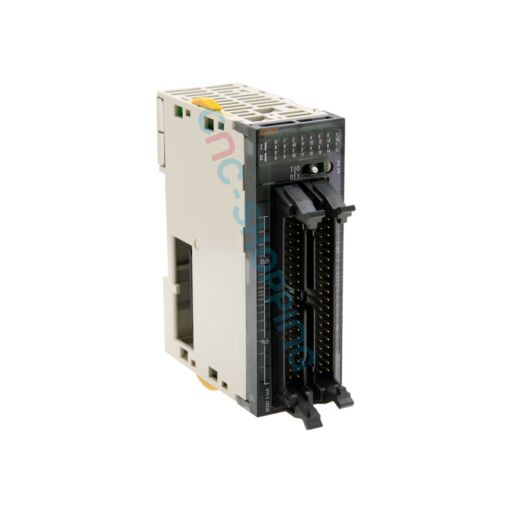

OMRON CJ1W-ID262 Module 64 Inputs 24VDC MIL

Be the first to review this product

Starting at $77.70 $77.70

Product condition Availability Warranty
Price
Refurbished
Ships from: FRANCE Warehouse
stock unavailable Out of stock
1 month Warranty - Factory return he product is under warranty for a factory return to our workshop, to be repaired or replaced, throughout its warranty period.
$77.70 $77.70
Contact Us
New
Ships from: FRANCE Warehouse
stock available Immediate shipment Estimate my delivery
6 months Warranty - Factory return he product is under warranty for a factory return to our workshop, to be repaired or replaced, throughout its warranty period.
$244.20 $244.20
Estimate my delivery

Enter your destination to get a shipping estimate.

  • High-quality products with warranty
  • Expert technical service
  • Secure payment and PDF invoice
Buy online your Input unit from the Japanese manufacturer OMRON referenced OMRON CJ1W-ID262 (CJ1W ID262 CJ1WID262 ID262) to order directly from Cnc-shopping. This OMRON CJ1W-ID262 module, requiring a 24V DC (4.1mA) power supply, belongs to the CJ1 Basic I/O Unit range and is equipped with 16 input points. This OMRON CJ1W-ID262 64 inputs unit is ready to replace the defective or faulty OMRON CJ1W-ID262 input module installed on your production machine-tools to reduce maintenance down-time. OMRON CJ1W-ID262 input unit comes with a functional warranty in order to ensure the minimum working life of the product.


OMRON CJ1W-ID262 MIL Connector.

Name: 64-point DC Input Unit with MIL Connector
Model CJ1W-ID262
Rated Input Voltage 24 VDC
Rated Input Voltage Range 20.4 to 26.4 VDC
Input Impedance 5.6 kΩ
Input Current 4.1 mA typical (at 24 VDC)
ON Voltage/ON Current 19.0 VDC min./3 mA min.
OFF Voltage/OFF Current 5 VDC max./1 mA max.
ON Response Time 8.0 ms max. (Can be set to between 0 and 32 in the Setup.)
OFF Response Time 8.0 ms max. (Can be set to between 0 and 32 in the Setup.)
Number of Circuits 64 (16 points/common, 4 circuits)
Number of Simultaneously ON Points 50% (8 points/common) simultaneously ON (at 24 VDC) (Refer to the following illustrations.)
Insulation Resistance 20 MΩ min. between external terminals and the GR terminal (100 VDC)
Dielectric Strength 1,000 VAC between the external terminals and the GR terminal for 1 minute at a leakage current of 10 mA max.
Internal Current Consumption 90 mA max.
More Information
AvailabilityImmediate shipment
Weight0.25 kgs
