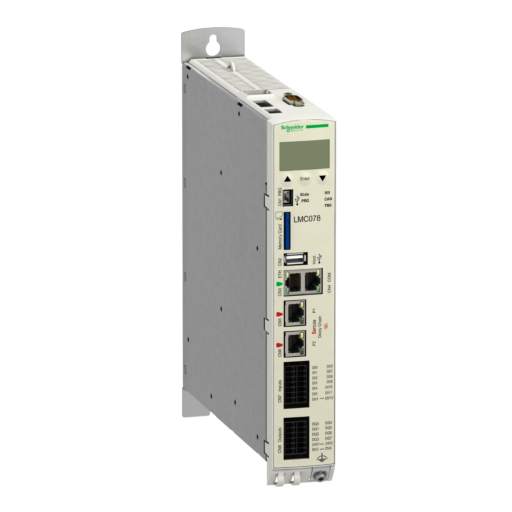

Schneider Electric LMC078CECS20T Modicon LMC078

Buy online your Schneider Electric LMC078CECS20T motion controller from our e-store Cnc-shopping. This advanced motion controller, crafted by Schneider Electric, is essential for the optimal maintenance of your industrial equipment.

The Schneider Electric LMC078CECS20T motion controller is part of the Modicon LMC078 product range. It features 20 discrete I/O with a 3 V lithium battery type. It includes 12 total discrete inputs (8 regular, 4 capture) with a logic input voltage of 24 VDC. The guaranteed state 1 voltage is 15…30 V for input, and state 0 is -3…5 V. The discrete input current is 4 mA with a 6 kOhm input impedance. Configurable filtering time ranges from 0.1 to 4,290 ms for both regular and capture inputs. It offers 8 discrete outputs with a source logic and a logic output voltage of 24 VDC. The output voltage limits are 19.2…28.8 V with short-circuit protection. It supports a maximum of 768 distributed digital I/Os and 364 distributed analog I/Os. The supply voltage is 24 VDC, with limits of 20.4…30 V. The nominal current is 500 mA per output, with a peak current of 2 A (duration = 1 s). Execution time per instruction is 2 ns. It includes 128 MB NVRAM, 512 MB RAM, and a 512 MB SD card for data storage.

This motion controller is ready to replace your defective Schneider Electric LMC078CECS20T motion controller and comes with a warranty from a reliable supplier who has been trusted for years.
