SIEMENS 1FT5074-0AG71-2-Z Motor Tacho Encoder

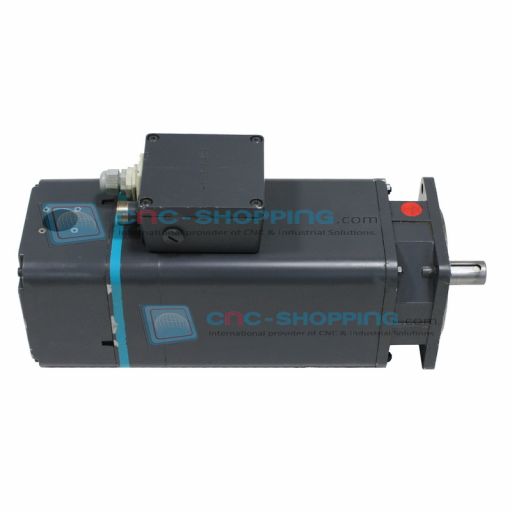

Our Cnc-shopping webstore offers you this SIEMENS axis motor reference 1FT5074-0AG71-2-Z (1FT50740AG712Z 1FT5O74OAG712Z 1FT5O74-OAG71-2-Z 1FU1050-6GG ROD 320.002 1250) from the permanent magnet SIEMENS 1FT5 range of motors. The SIEMENS 1FT5074-0AG71-2-Z non ventilated servomotor has a keyed cylindrical shaft 24 mm diameter on its 130 mm centering diameter with a nominal rotation speed of 4000 rpm without brake. The SIEMENS 1FT5074-0AG71-2-Z is supplied with a 380V three-phase alternative current and equipped with a tachometer generator SIEMENS that provides 10,0 mVmin reference 1FU1050-6GG and comes with a 1250 pulses HEIDENHAIN ROD 320.002 coder sold separately that is also available for purchase on the Cnc-shopping webstore. This SIEMENS 1FT5074-0AG71-2-Z permanent magnet axis motor connects through the two sockets mounted on the terminal box (power, tacho). This SIEMENS 1FT5074-0AG71-2-Z motor is ready to replace your old or defective SIEMENS 1FT5074-0AG71-2-Z installed on your CNC machine-tools and is sold with an functional warranty.

Our SIEMENS 1FT5 motors are fully tested and refurbished by our technicians according to manufacturer's procedures and with servo drives SIEMENS.

The protection index for this SIEMENS 1FT5074-0AG71-2-Z motor is IP64 which means that the SIEMENS 1FT5 motor is fully protected against dust and water sprays from all directions. Option Z: H01.
