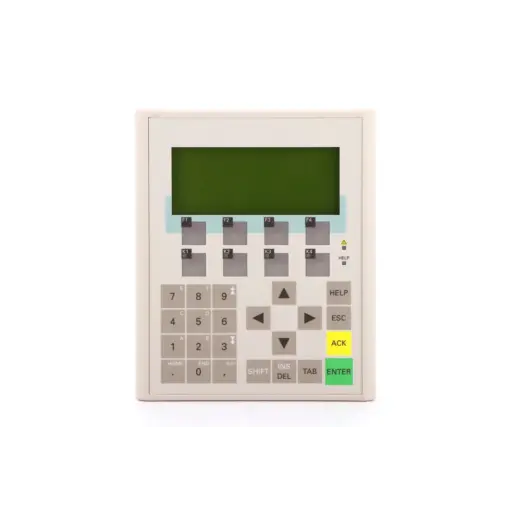

SIEMENS 6AV6641-0CA01-0AX0 Simatic OP77B Operator panel

Buy online your SIEMENS 6AV6641-0CA01-0AX0 Simatic OP77B Operator panel reference 6AV6641-0CA01-0AX0 from our US e-store Cnc-shopping USA, specialist in CNC machine-tools spare parts.

This compact SIEMENS SIMATIC OP77B HMI is a keypad-operated operator interface for S7-300 and S7-400 based machines, widely used on CNC machinery and industrial equipment. It provides local visualization, alarm viewing and setpoint entry, with communication over MPI/PROFIBUS DP up to 12 Mbit/s on RS-485. Powered by a stable 24 V DC supply, it serves as a practical replacement unit in legacy and current S7 panels where quick field replacement is required to recover machine uptime.

Engineered for straightforward integration, the OP77B connects directly to existing MPI or DP segments without changing the installed S7 network plan. The 4.5-inch graphical display suits cabinet door mounting and compact operator consoles where a clear interface is needed for routine operation and maintenance checks. Projects created with standard SIEMENS HMI engineering tools are typically transferred to this model so operators retain familiar screens and key assignments.

In real production settings the panel handles machine states, alarm acknowledgments and data entry tied to S7 logic, often next to SIEMENS drives and I/O in the same cabinet. Its proven footprint and wiring concept help maintenance teams complete a drop-in replacement with minimal disturbance to the PROFIBUS DP segment, which shortens downtime during urgent service calls.

For service teams supporting older CNC and special-purpose machines, the OP77B remains a reliable spare part that preserves established workflows. Many facilities keep one unit in industrial spare inventory to support preventive maintenance schedules and reduce repair turnaround when an HMI fails unexpectedly.

Reference: 6AV6641-0CA01-0AX0

Manufacturer: SIEMENS

Product type: SIEMENS HMI Operator Panel

Main function: Keypad-driven operator interface for SIMATIC S7 machines providing visualization, alarm handling and data entry over MPI or PROFIBUS DP.

Applications: CNC machine-tools, packaging lines, assembly stations and custom industrial equipment using S7-300 or S7-400 controllers.

Key technical data: 4.5-inch graphical display for local operation, 24 V DC power input, MPI/PROFIBUS DP communication up to 12 Mbit/s on RS-485, engineered for cabinet or console mounting in S7 environments. Alternate industry formats include 6AV6641 0CA01 0AX0 and 6AV66410CA010AX0. Many stocked items ship directly from our Florida facility.

On the production floor this model is commonly installed where operators need quick access to setpoints and diagnostics next to the machine. When a panel fails, swapping to the same order reference typically maintains mechanical fit, wiring, and addressing. Uploading the saved HMI project restores the exact interface so teams can resume operation with minimal retraining.

Each tested unit is verified on appropriate SIEMENS test benches or simulators by skilled engineers, then packed for industrial shipping. Supplied with a functional warranty for service confidence. Most products are shipped from our Florida warehouse unless otherwise specified on the product page.

For legacy or obsolete part scenarios, this model can be held as an emergency spare to limit unexpected downtime. Cnc-shopping USA supports repair service, potential exchange service and sourcing options to keep older S7-based machines in service.
