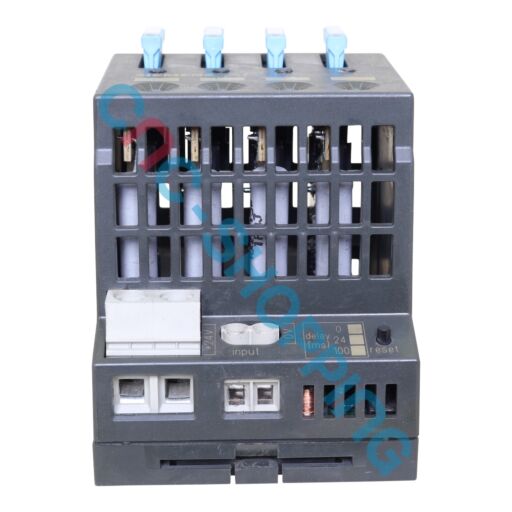

SIEMENS 6EP1961-2BA00 SITOP Select diagnostics module

Buy online your SIEMENS 6EP1961-2BA00 SITOP Select diagnostics module from US e-store Cnc-shopping USA, specialist in CNC machine-tools spare parts.

This SIEMENS 6EP1961-2BA00 is a SITOP Select electronic protection and diagnostic module designed for reliable 24 V DC power distribution in industrial automation and CNC control cabinets. It provides selective protection for multiple load branches, helping isolate faulty circuits while keeping the remaining control system powered.

The module accepts a 24 V DC / 40 A input and provides four individually protected output channels rated at 24 V DC / 4 × 10 A. Each channel has an adjustable trip threshold from 2 to 10 A, allowing the protection level to be adapted to the connected load.

The SITOP Select monitors downstream circuits and electronically disconnects an overloaded or short-circuited branch while maintaining power to unaffected circuits. This selective protection is suitable for SIMATIC S7 PLCs, SINUMERIK systems, HMIs, sensors, I/O modules, valve islands, and other 24 V DC control equipment.

Designed for DIN-rail installation, the module provides local status indication and integrated diagnostics for faster fault identification during maintenance. It is suitable for machine tools, robotics, packaging equipment, material handling systems, and other industrial automation applications.

The 6EP1961-2BA00 is suitable as a replacement unit, CNC replacement component, or industrial spare part for existing SITOP installations. Keeping a tested unit in stock can help reduce downtime and quickly restore selective 24 V protection following a module failure.

This SIEMENS SITOP Select module can be supplied as a tested unit with commercial warranty, protective industrial packaging, and worldwide shipping. Fast dispatch is available depending on inventory, with repair service, exchange service, and sourcing of obsolete parts available when applicable.

Frequently asked questions about 6EP1961-2BA00:

Does this SITOP Select module work only with SIEMENS power supplies?
It is designed for stabilized 24 V DC rails and pairs naturally with SIEMENS SITOP PSUs. It can also be used downstream of other industrial 24 V supplies when sized correctly for the total load.

What is the advantage over conventional fuses or circuit breakers?
Electronic selectivity trips only the affected branch and maintains voltage to the remaining loads. This speeds up troubleshooting, helps avoid full control drops and improves machine uptime compared to shared fusing.

Is it suitable for PLCs, I/O and small motion peripherals?
Yes, it is intended for control-level loads such as PLC CPUs, I/O racks, HMIs, sensors and actuator islands on the 24 V DC bus. Always verify channel settings and load characteristics during commissioning.

Can I use it during a panel retrofit on an older CNC machine?
Yes, it is commonly installed during retrofits to modernize the 24 V distribution. It provides clearer diagnostics and selective protection, which helps maintain legacy CNC availability and simplifies service.
