SIEMENS 6ES7151-1AA04-0AB0 SIMATIC DP INTERFACE MODULE

Buy online your SIEMENS SIMATIC DP INTERFACE MODULE reference 6ES7151-1AA04-0AB0 from US e-store Cnc-shopping USA, specialist in CNC machine-tools spare parts.

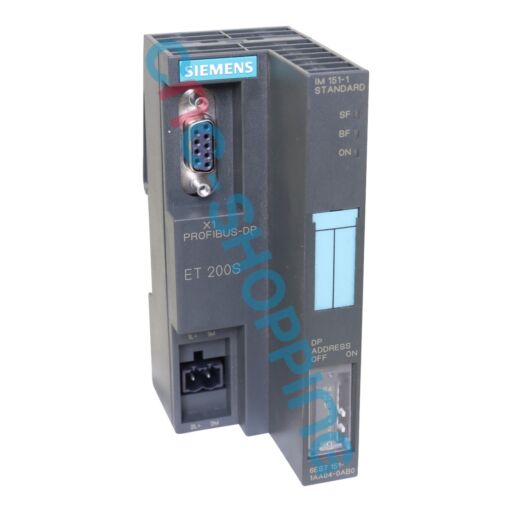

This SIEMENS 6ES7151-1AA04-0AB0 is a SIMATIC ET 200S IM151-1 Standard interface module designed to connect distributed I/O stations to PROFIBUS DP. Operating as a DP slave, it provides the communication interface between the ET 200S I/O station and SIMATIC S7 or SINUMERIK CNC controllers.

The module supports PROFIBUS DP V0 and V1 and provides up to 244 bytes of input data and 244 bytes of output data. It supports up to 63 peripheral modules with a station width of up to 2 m and uses a standard 9-pin SUB-D PROFIBUS connector. The DP node address is set directly on the interface module.

The IM151-1 Standard provides cyclic I/O communication and diagnostic information between the ET 200S station and the PLC or CNC master. It is suitable for machine tools, CNC systems, assembly lines, handling equipment, packaging machinery, and industrial automation where distributed I/O is installed close to sensors and actuators.

Manufactured in Germany, the 6ES7151-1AA04-0AB0 is suitable as a CNC replacement component, industrial spare part, stocked replacement, or emergency spare for existing ET 200S installations. Matching the exact order number helps ensure mechanical and configuration compatibility when replacing a defective interface module.

The unit can be supplied as a tested component with protective industrial packaging and commercial warranty. Fast dispatch is available depending on inventory and destination, with worldwide shipping, obsolete-part sourcing, repair, exchange, and refurbished-unit services available when applicable.

Frequently asked questions about 6ES7151-1AA04-0AB0:

Is this module compatible with ET 200S I/O slices already installed on my station?
Yes, it serves as the interface head for the ET 200S platform and works with the standard digital and analog I/O modules in that family when used according to SIEMENS guidelines.

Which masters can control this unit on PROFIBUS DP?
It operates as a DP slave to S7-300 and S7-400 PLCs, and it is widely used with SINUMERIK CNC systems that implement PROFIBUS DP as the fieldbus for distributed I/O.

How is the PROFIBUS address set during replacement?
The node address is adjusted on the front of the module using its built-in selectors. Match the original address and hardware order code for a drop-in change without mechanical modifications.

What should maintenance teams check when swapping a faulty unit?
Confirm the order number, DP address, and bus connector seating. After power-up, verify that diagnostics LEDs indicate bus communication and that the PLC or CNC reads the expected I/O image without configuration mismatches.
