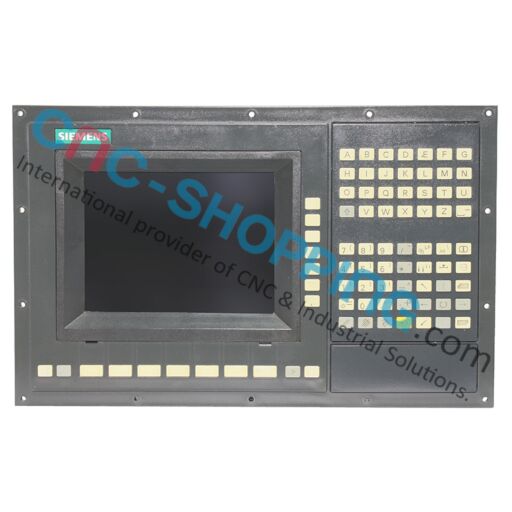

SIEMENS 6FC5103-0AB03-0AA2 Sinumerik 840C/840CE Complete Operator Panel Color Display 9.5inch

Starting at $2,553.00 $2,553.00

Product condition Availability Warranty
Price
Refurbished
Ships from: USA Warehouse
stock available Shipment within 3 days
4 months Warranty - Factory return he product is under warranty for a factory return to our workshop, to be repaired or replaced, throughout its warranty period.
$2,553.00 $2,553.00
Estimate Totals

Enter your destination to get a totals estimate.

  • Top-quality products backed by a warranty
  • Advanced technical support
  • Secure payment process with PDF invoice

Buy online your SIEMENS 6FC5103-0AB03-0AA2 Sinumerik 840C/840CE Complete Operator Panel Color Display 9.5inch reference 6FC5103-0AB03-0AA2 from our US e-store Cnc-shopping USA, specialist in CNC machine-tools spare parts.

This SIEMENS front HMI assembly for SINUMERIK 840C/840CE replaces the complete operator unit on legacy CNC machine tools. It integrates a 9.5 inch color display, the full machine keyboard and dual touch key strips with the internal interface electronics, providing the main programming, setup and cycle operation interface. Commonly sourced as a refurbished unit or replacement unit, it restores the operator console when the original screen fades, keys fail or the internal PSU goes down.

Delivered as a SLIMLINE front panel, the 6FC5103-0AB03-0AA2 includes the SIEMENS 6FC5147-0AA14-0AA1 power module, the factory interface board and the complete keypad set. The wide range 115-230 V AC input supports field replacement in mixed-voltage cabinets without extra conversion hardware. The integrated interface board links directly to SINUMERIK 840C/840CE controls, so no separate HMI stack is required during swap-out.

Typical use is on machining centers, turning machines and grinders built around the 840C or 840CE platform. The assembly is panel-cutout compatible with the same reference and is frequently ordered under alternate markings such as 6FC5103 0AB03 0AA2, 6FC51030AB030AA2 and field-noted variants like 6FC51O3-OABO3-OAA2. Made in Germany, this CNC replacement component is suited for service spares, retrofits and front-panel overhauls on older SINUMERIK systems.

Reference: 6FC5103-0AB03-0AA2

Manufacturer: SIEMENS

Product family: Operator panel for SINUMERIK 840C/840CE

Main function: Complete front HMI with integrated 9.5 inch color screen, full keyboard and two touch key strips for programming, setup and machine operation

Applications: Direct front-panel replacement on mills, lathes and grinders running 840C/840CE, used for field replacement, retrofit work and service stock on legacy installations

Key technical data: SLIMLINE assembly with integrated SIEMENS interface board for 840C/840CE, includes PSU 6FC5147-0AA14-0AA1 code 581 264 TA, input 115-230 V AC, full keypad with dual touch key strips, panel-cutout compatible with the same reference, refurbished and tested unit with functional warranty, made in Germany, also referenced as 6FC5103 0AB03 0AA2 and 6FC51030AB030AA2

In maintenance practice this front panel resolves no-display conditions, dim or unstable screens, unresponsive keys and internal power faults on 840C/840CE consoles. Keeping a stocked spare on the shelf enables a rapid field replacement and short repair turnaround during unplanned downtime or during scheduled overhauls where an HMI refresh is planned.

For retrofit or after mechanical damage to the original console, this complete front assembly provides a clean drop-in replacement with minimal cabinet work. The integrated interface and included PSU simplify the swap, helping teams return the machine to service without reworking separate HMI subsystems.

Each refurbished panel is verified by skilled engineers on appropriate SINUMERIK 840C/840CE test benches and simulators, including display stability checks, keyboard response validation and power integrity tests. Units are packed in ESD-safe materials and prepared for industrial transport, supplied with a functional warranty. Many stocked items ship directly from our Florida facility, depending on availability.

As an obsolete part in many plants, this assembly is often held as an emergency spare part to limit unexpected downtime. Cnc-shopping USA supports sourcing for legacy SINUMERIK HMIs and can assist with repair service or exchange service options when suitable, allowing older 840C/840CE installations to remain operational with dependable front-end control.

Frequently asked questions about 6FC5103-0AB03-0AA2:

Is this a direct replacement for both 840C and 840CE controls?
Yes, it is designed for SINUMERIK 840C/840CE and includes the SIEMENS interface board required for these systems.

What is included with the assembly?
The unit comes complete with the 9.5 inch color display, full machine keyboard, two touch key strips, the interface board and the 6FC5147-0AA14-0AA1 PSU.

What input voltage does it accept?
It operates on 115-230 V AC. Verify cabinet wiring, protection and grounding as part of standard replacement practice.

Will it fit the existing panel cutout?
It is panel-cutout compatible for the same reference, making it a practical field replacement on machines originally equipped with this model.

Are alternate markings equivalent to this reference?
Field markings such as 6FC5103 0AB03 0AA2, 6FC51030AB030AA2 and PSU code 581 264 TA are commonly associated with this complete operator panel.
