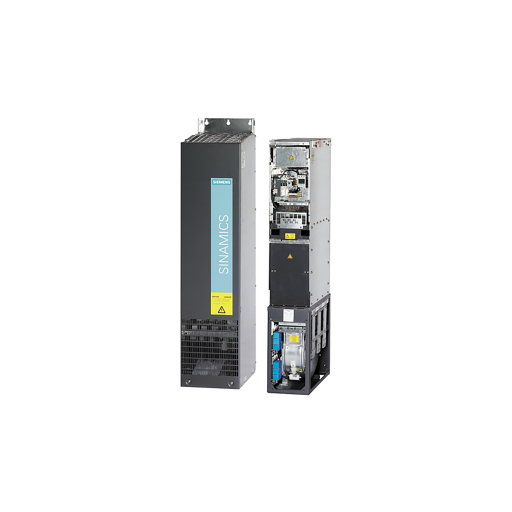

SIEMENS 6SL3300-7TE32-6AA0 Sinamics S120 Active interface module 132/160 kW 210A/260A

Active Interface Modules are used in conjunction with the Active Line Modules in chassis format.

 The Active Interface Modules contain a Clean Power Filter with basic RI suppression, the precharging circuit for the Active Line Module, the line voltage sensing circuit and monitoring sensors. The bypass contactor is an integral component in frame sizes FI and GI, which ensures a highly compact design. The bypass contactor must be provided separately for frame sizes HI and JI. The vast majority of line harmonics are suppressed by the Clean Power Filter. The Active Interface Module contains: • Clean Power Filter • Line reactor • Precharging circuit • Bypass contactor (frame sizes FI/GI) • Voltage Sensing Module VSM10 • Fan
