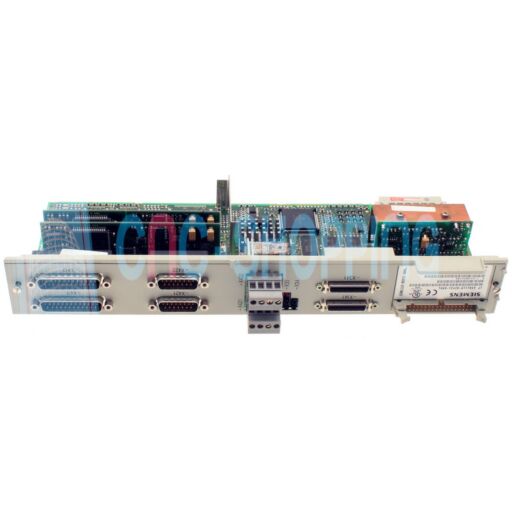

SIEMENS 6SN1118-0DH21-0AA1 Digital Reg Board 2 axes

Buy online your SIEMENS 6SN1118-0DH21-0AA1 Digital Reg Board 2 axes reference 6SN1118-0DH21-0AA1 from our US e-store Cnc-shopping USA, specialist in CNC machine-tools spare parts.

The SIEMENS SIMODRIVE 6SN1118 two-axis digital regulation board is designed for the SIMODRIVE 611-D platform and provides closed-loop current and speed control for two servo-driven feed axes such as 6SN1123 and 6SN1124 LT-Modul. Used as a CNC replacement component or stocked spare part, it restores stable axis behavior on machining centers, lathes and grinders built on 611-D drive stacks.

This module plugs into the 611-D power section and manages the digital regulation for two axes through the internal drive bus and the CNC interface. When correctly matched to motor and feedback data, it stabilizes axis motion and maintains repeatable positioning under typical shop-floor conditions. Common use cases include X and Y feeds on machining centers, turning axes on CNC lathes, and traverse functions on grinding equipment.

The exact variant 6SN1118-0DH21-0AA1 supports two-axis configurations inside the 611-D assembly. Field technicians can confirm a like-for-like replacement unit using the board identifiers P.C.B ref 462008.7805.58 and marking GWE-567008901480. Selecting the identical code avoids mix-ups among the many 6SN1118 versions deployed on legacy machines.

In service or retrofit contexts this control board is favored because it sits within the existing 611-D hardware stack, so mechanical intervention is minimal during a swap. After replacement, teams typically verify machine data and axis parameters to align with the original configuration and bring the machine back online quickly.

Reference: 6SN1118-0DH21-0AA1

Manufacturer: SIEMENS

Product type: SIMODRIVE 6SN1118 two-axis digital regulation board for 611-D

Main function: Digital closed-loop current and speed control for two SIEMENS servo-driven feed axes within a 611-D power module

Applications: X and Y feeds on machining centers, turning axes on CNC lathes, traverse axes on grinders and other machines running SIMODRIVE 611-D

Key technical data: Interfaces with the 611-D internal bus and CNC control, manages two digital axes using SIEMENS servo motors, identification via P.C.B ref 462008.7805.58 and marking GWE-567008901480, supplied as a tested unit with warranty, typical dispatch within 3 days depending on availability.

On the production floor this module is commonly sourced to resolve drive alarms or unstable axis behavior traced to regulation electronics. Many maintenance departments keep a stocked spare for the 611-D stack to reduce downtime on older installations where the same power modules and motors remain in service.

Each unit is verified by skilled engineers on appropriate SIMODRIVE 611-D test benches or simulators that exercise both axis channels. Boards are packed in ESD-safe materials and shipped for industrial use. A warranty is included. Many stocked items ship directly from our Florida facility.

For legacy systems the 6SN1118-0DH21-0AA1 is often retained as an emergency spare to keep machines running without a full drive upgrade. Cnc-shopping USA can assist with repair service, exchange service or sourcing of obsolete parts when needed.

Frequently asked questions about 6SN1118-0DH21-0AA1:

Is this Siemens 6SN1118 board usable across all 611-D power module variants?
It is intended for two-axis regulation in the SIMODRIVE 611-D system. Match the exact code 6SN1118-0DH21-0AA1 and verify the 6SN1123 drive stack layout on your machine for a true drop-in replacement.

Can it replace other 6SN1118 Reg. board versions with different suffixes?
Not all versions are interchangeable. Use the identical variant or confirm an approved cross-reference before installation to avoid configuration mismatches.

Will machine parameters be retained after a 6SN1118 board swap?
Machine-specific settings are managed by the CNC and drive configuration. After replacement, technicians should confirm and reload the correct machine data so both axes match the original setup.

How do I confirm the correct hardware revision on the bench?
Check the front-side marking 6SN1118-0DH21-0AA1 and the identifiers 462008.7805.58 and GWE-567008901480. These references help verify that the unit suits your 611-D installation.
