TR ELECTRONIC CE 58S 4096 Rotary Encoder 11-27VDC

Buy online your TR ELECTRONIC CE 58S 4096 Rotary Encoder from US e-store Cnc-shopping USA, specialist in CNC machine-tools spare parts.

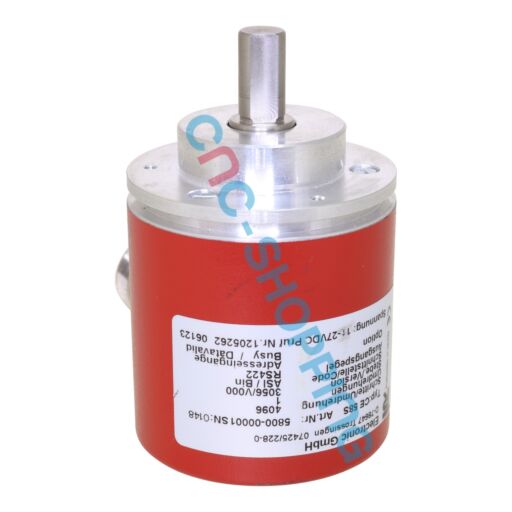

This TR-ELECTRONIC CE58S incremental rotary encoder is designed to provide precise position and speed feedback for CNC axes, indexing systems and industrial automation equipment. With 4096 counts per revolution and an 11–27 VDC supply range, it is suitable for control systems using standard 24 VDC encoder power.

The CE58S-4096 features a compact 58 mm housing and provides an RS-422 output signal for reliable transmission of incremental feedback to compatible CNC controls, servo drives and PLC modules. Its art. nr. 5800-00001 identification should be matched with the existing machine configuration before replacement.

This TR-ELECTRONIC encoder is commonly used for CNC axis feedback, spindle orientation, rotary tables, indexing equipment, handling systems and packaging machinery. It can serve as a replacement unit, spare part or CNC replacement component when an existing encoder has failed or when feedback performance needs to be restored.

The 4096-count resolution supports accurate positioning, repeatable homing and stable motion control. Matching the original encoder resolution, output interface, mechanical mounting and wiring helps simplify installation and avoids unnecessary changes to the CNC or drive parameters.

Each unit can be tested on appropriate CNC encoder test equipment by skilled technicians to verify signal integrity and resolution before shipment. Protective packaging is used for industrial transportation, and a commercial warranty is provided according to our standard terms.

Cnc-shopping can supply this TR-ELECTRONIC CE58S-4096 as a tested unit, spare part or emergency spare, depending on availability. We can also assist with sourcing obsolete parts and provide repair service or exchange service when applicable, with worldwide shipping and fast dispatch depending on stock.

Frequently asked questions about CE58S-4096 :

Is this an incremental model and what does 4096 represent
Yes, it is an incremental encoder where 4096 denotes the counts per revolution. Match this resolution with the drive or PLC configuration to keep scale factors and axis tuning consistent.

What power supply and interface should I expect
The unit operates on 11–27 VDC, which is suitable for typical 24 V encoder inputs found on servo drives and PLC modules. Verify signal level and pinout against the machine documentation before installation.

Will the 58 mm body fit my current mounting
The 58 mm housing is a common industrial size and often fits standard European patterns. Confirm flange style, shaft dimensions and connector orientation against the original part for a clean drop-in replacement.

Any replacement tips for minimizing downtime
Match resolution and electrical characteristics to the original, document wiring before removal and keep at least one tested unit in plant inventory. This approach shortens repair turnaround and maintains machine uptime.
