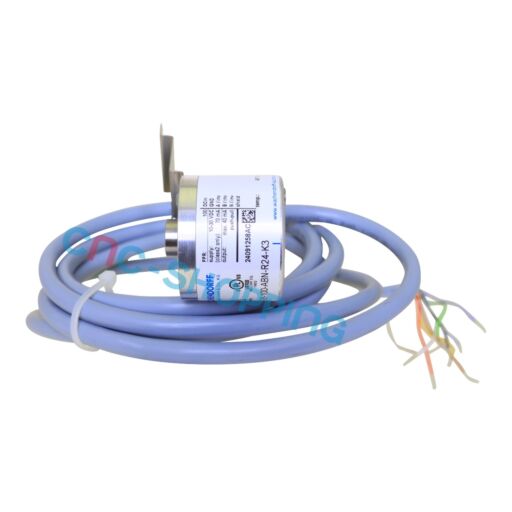

Wachendorff WDG 40E-06-100-ABN-R24-K3 Incremental Encoder

Buy online your Wachendorff WDG 40E-06-100-ABN-R24-K3 Incremental Encoder from US e-store Cnc-shopping USA, specialist in CNC machine-tools spare parts.

The Wachendorff WDG40E-06-100-ABN-R24-K3 is a compact incremental rotary encoder from the WDG 40E series, designed to provide reliable A, B and index feedback for CNC machines, servo systems and industrial automation equipment. It supplies accurate quadrature signals for speed monitoring, position tracking and homing applications.

With a compact 40 mm housing, a 6 mm solid shaft and 100 pulses per revolution, this Wachendorff encoder is suitable for space-constrained installations on CNC axes, spindles, gearmotors, feed rollers, conveyors and packaging equipment. The ABN output provides A and B quadrature channels together with an index pulse for repeatable referencing and positioning.

The encoder operates from a 10–30 VDC supply with a current consumption of 70 mA and a maximum output current of 40 mA push-pull. The exact reference WDG40E-06-100-ABN-R24-K3 should be matched with the existing encoder to ensure compatibility with the required shaft size, mounting configuration, signal interface and electrical characteristics.

This Wachendorff incremental encoder is a practical replacement unit, spare part or CNC replacement component for machines experiencing missed counts, unstable speed feedback, following errors or unreliable homing. Its compact design makes it suitable for retrofit projects and maintenance of legacy CNC and industrial equipment.

Keeping a tested unit in industrial spare inventory can help reduce downtime during planned maintenance or unexpected encoder failures. It can also serve as an emergency spare for critical production equipment requiring rapid restoration of motion feedback.

Each unit supplied by Cnc-shopping can be function tested on dedicated encoder test benches or CNC simulators to verify pulse count, signal quality, phase relationship and index operation. Units are securely packaged for industrial transport and supplied with a commercial warranty, with fast dispatch depending on availability and worldwide shipping.

The Wachendorff WDG40E-06-100-ABN-R24-K3 can also be sourced for obsolete equipment, with repair services and exchange services available when applicable. This provides maintenance teams with practical options for keeping older CNC and automation systems operational.

Frequently asked questions about WDG40E-06-100-ABN-R24-K3:

What signal format does this encoder provide?
It outputs quadrature A and B channels plus a reference index pulse, suitable for homing and position validation on CNC and PLC modules.

What is the resolution of this unit?
This reference provides 100 pulses per revolution, read in quadrature by most drives and counters for speed and basic positioning tasks.

What is the shaft and housing size?
The code indicates a 6 mm solid shaft within the WDG 40E compact 40 mm housing, designed for tight motor compartments and small machinery.

Where is it typically installed on a machine?
Common installations include servo motor tail shafts, feed rollers, encoder wheels and drive shafts where dependable incremental feedback is required for control and diagnostics.
