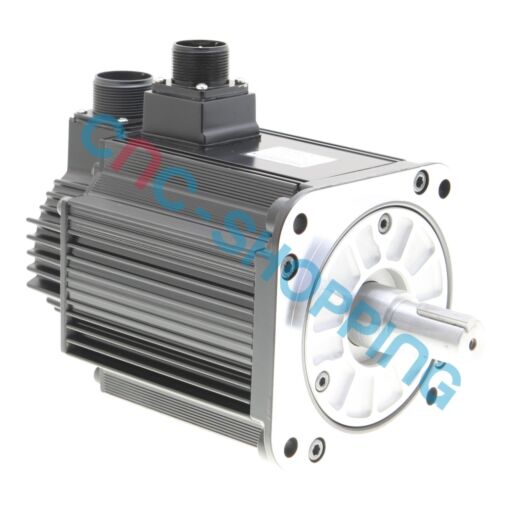

YASKAWA SGMGH-13DCA61 Servo motor 400V 5.4A 1300W

Buy online your YASKAWA SGMGH-13DCA61 Servo motor 400V 5.4A 1300W reference SGMGH-13DCA61 from our US e-store Cnc-shopping USA, specialist in CNC machine-tools spare parts.

The YASKAWA unit identified by SGMGH-13DCA61 is a 400 V class AC servo motor used for CNC feed axes and precision positioning on machine-tools and industrial equipment. It serves as a dependable replacement motor or spare part for maintenance teams handling urgent downtime, retrofit work or planned overhauls on systems built around Yaskawa servo technology. Many stocked items ship directly from our Florida facility depending on availability.

This motor delivers 1.3 kW mechanical output with a 1500 rpm rated speed and about 8.34 N-m rated torque, providing stable closed-loop control for milling, turning, grinding and handling axes. The integrated encoder is factory matched to the rotor which supports precise feedback alignment when replacing a like-for-like unit that carries the same full code. The straight keyed shaft simplifies coupling to ballscrews or gearboxes when the key size and diameter match the installed hardware.

This version is supplied with no holding brake and no oil or dust seal, so selection typically targets protected enclosures, non-vertical axes or applications where a brake is not required. Confirm environmental protection at the machine level, and use a brake-equipped or sealed variant where the application demands it.

Within the SGMGH family, this model is commonly paired with Yaskawa servo packs of corresponding series and capacity. For a direct swap, verify the complete motor code, mounting flange, pilot dimensions, shaft diameter and keyway, plus power and encoder connector orientations. Matching these details helps maintenance teams perform a fast field replacement with minimal parameter adjustment on the existing drive.

Reference: SGMGH-13DCA61

Manufacturer: YASKAWA

Product type: YASKAWA Servo Motors

Main function: Precision axis drive for CNC positioning and feed motion

Applications: Horizontal and rotary axes on machining centers, lathes, grinders and automated fixtures where a 400 V class servo is specified

Key technical data: 1.3 kW output, 1500 rpm rated speed, approx. 8.34 N-m rated torque, 5.4 A rated current, 400 V class winding, integrated encoder, straight keyed shaft, no brake, no shaft oil or dust seal, made in Japan

In daily maintenance use, this model is often held as a stocked spare to recover a down machine quickly. When the installed unit shares the same code, technicians can reconnect, verify drive parameters and return the axis to service within a short window which helps limit production losses. For planned retrofits, it is frequently sourced as a replacement unit to restore repeatable positioning and stable low speed performance without changing couplings or mounts.

Each unit can be tested on CNC simulators with servo motors by skilled engineers when applicable, including feedback checks and insulation measurements. Motors are packed with shaft protection and dense cushioning suitable for industrial shipping. Warranty terms are provided by Cnc-shopping USA. Depending on availability, products are commonly dispatched from our Florida warehouse.

This model can serve as an emergency spare part when the original becomes an obsolete part or fails unexpectedly. Cnc-shopping USA supports repair service, refurbished unit and potential exchange service options to keep legacy CNC assets running with minimal disruption. Worldwide shipping options are available on request.

Frequently asked questions about SGMGH-13DCA61:

Is the encoder included and will it work with my existing Yaskawa servo pack?
Yes, the motor is supplied with its integrated encoder. For a direct swap, match the full motor code with the installed unit and confirm compatibility with the existing Yaskawa drive before commissioning.

Can this version be used on a vertical axis that requires a brake?
This model does not include a holding brake. If the machine relies on a brake for holding, select the corresponding brake-equipped variant or verify that a mechanical holding device is present on the axis.

What should I confirm for a drop-in field replacement?
Check the complete code, 400 V class rating, 5.4 A current, 1500 rpm base speed, shaft diameter and key size, connector orientation and mounting dimensions. Verify these points against the original nameplate and machine documentation.

Does this unit have a shaft oil or dust seal?
No, this version is supplied without a shaft seal. Ensure the installation environment is protected or consider a sealed variant if contaminants are expected.
